Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

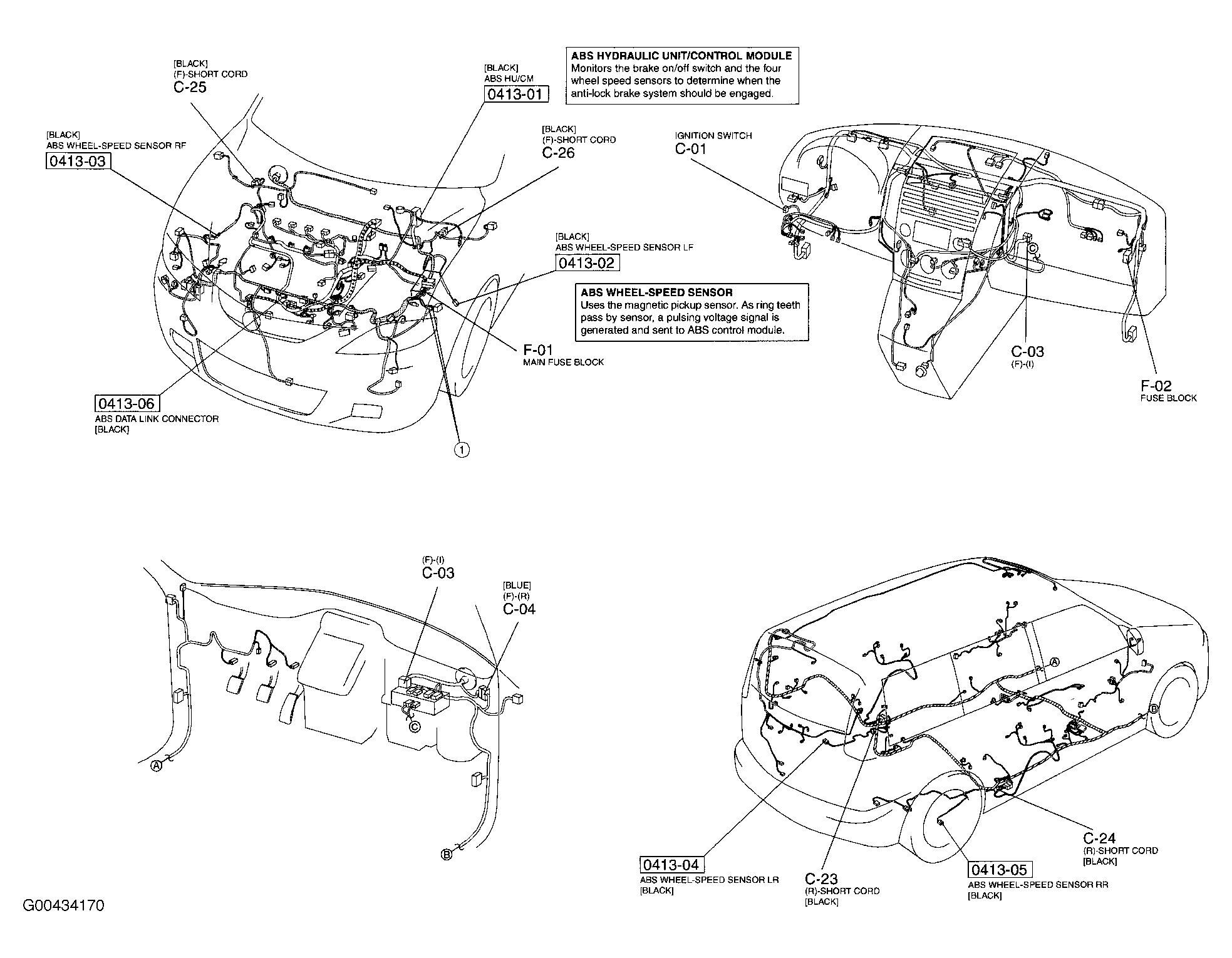

| ABS Hydraulic Unit/Control Module | Left rear corner of engine compartment. See Figure. |
| BCM | Behind right side of dash. See Figure. |

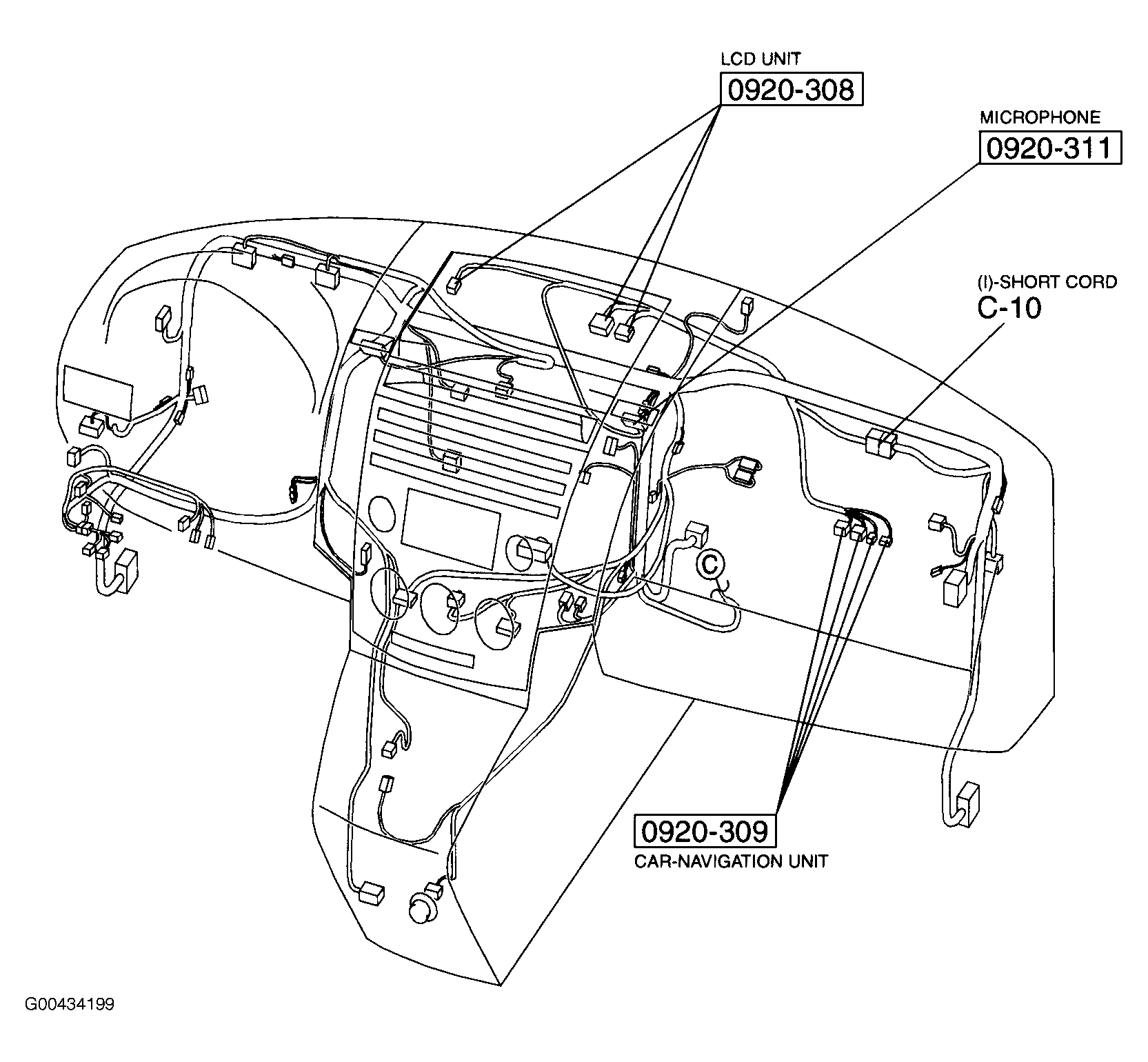

| Car Navigation Unit | Behind right side of dash. See Figure. |

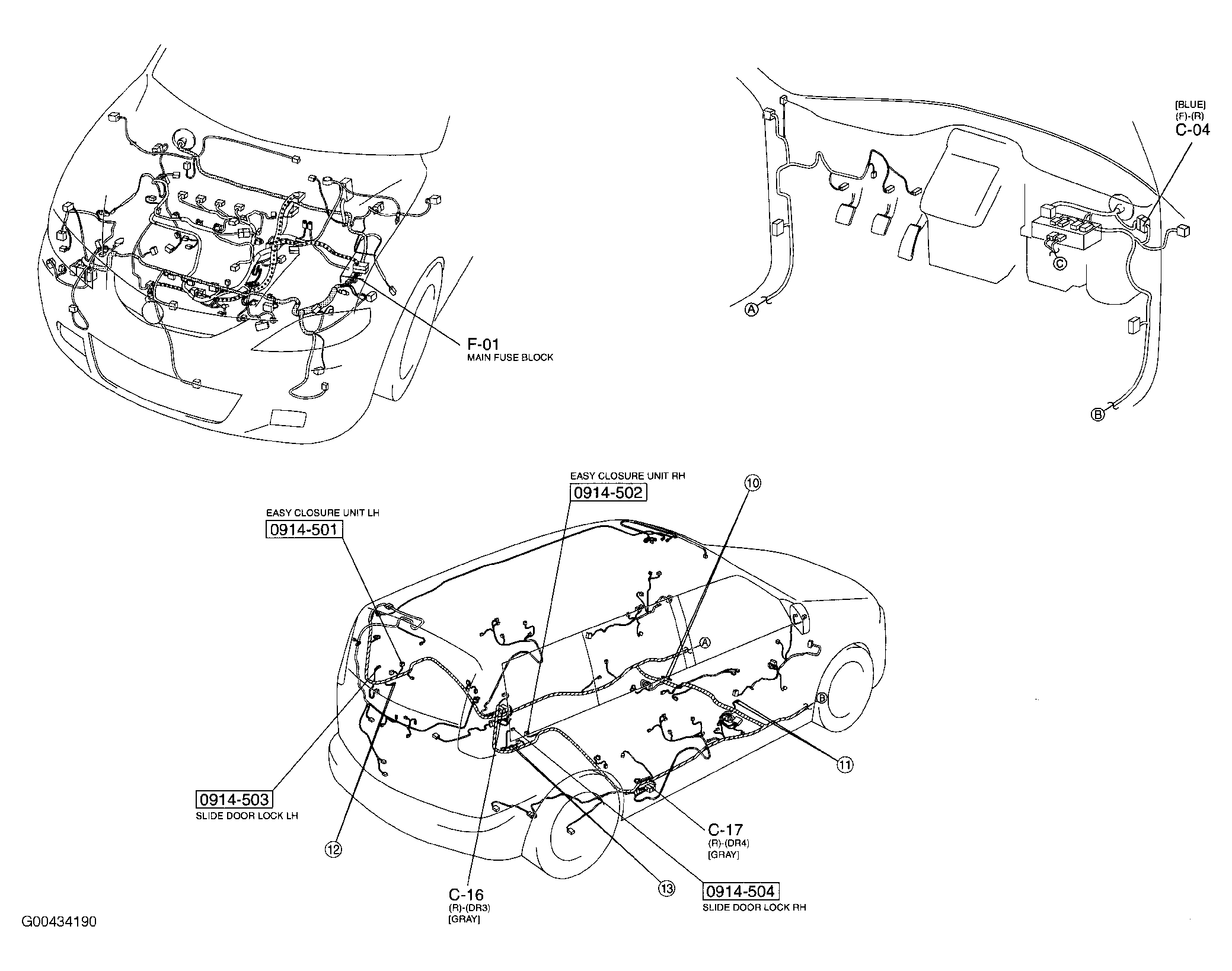

| Easy Closure Unit (Left/Right) | Behind respective rear quarterpanel. See Figure. |

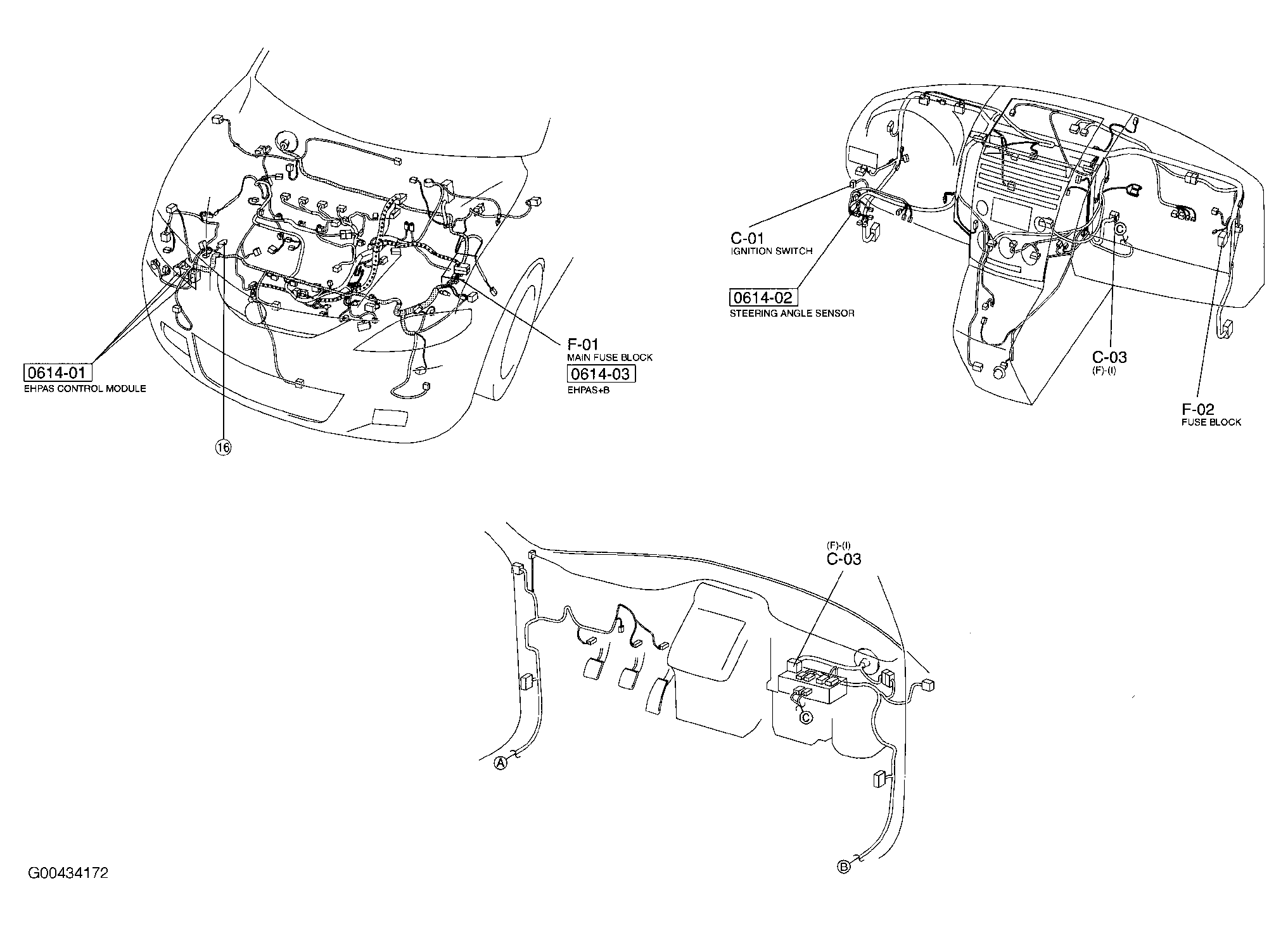

| EHPAS Control Module | Right front of engine compartment. See Figure. |

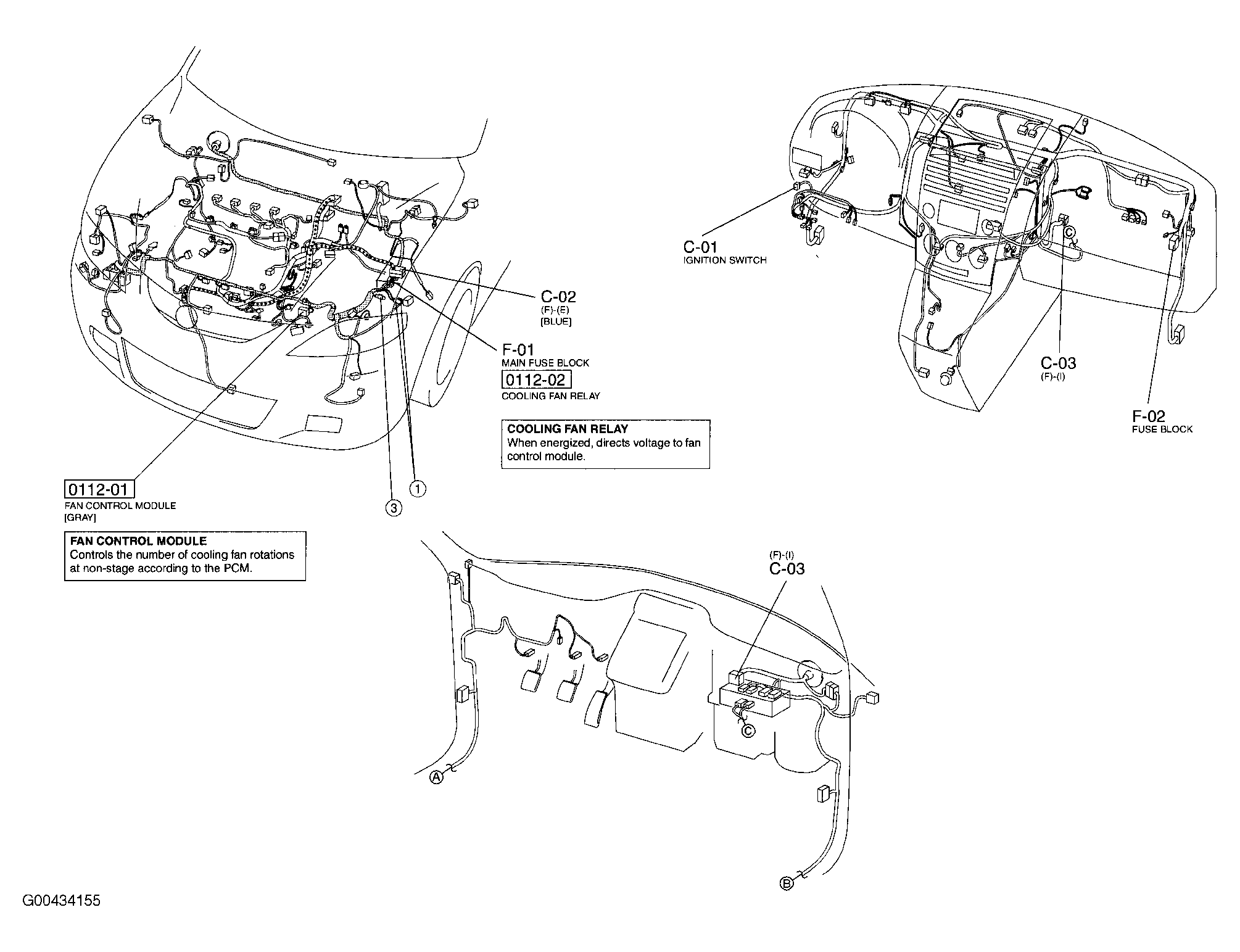

| Fan Control Module | Left front of engine compartment. See Figure. |

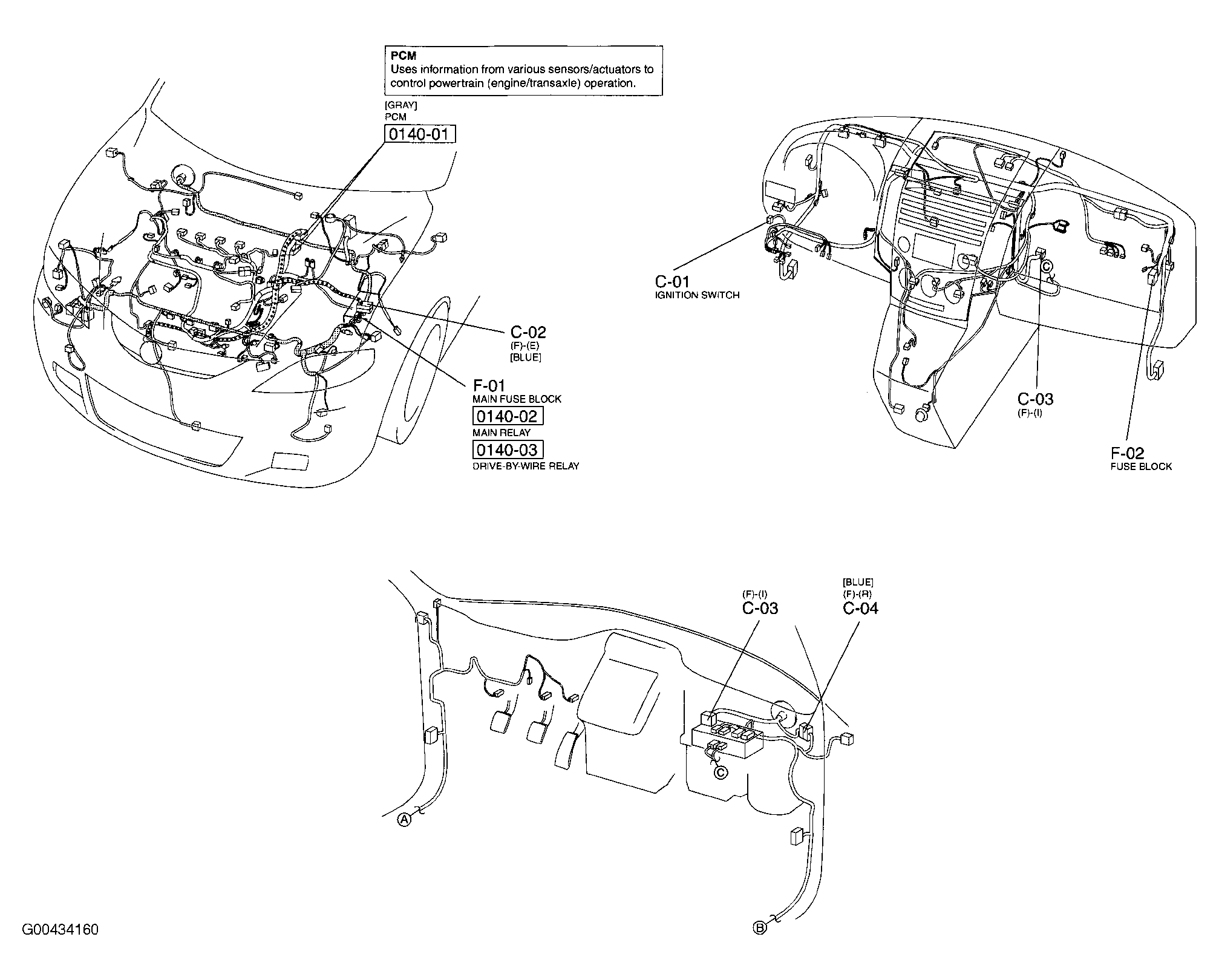

| PCM | Rear of engine compartment. See Figure. |

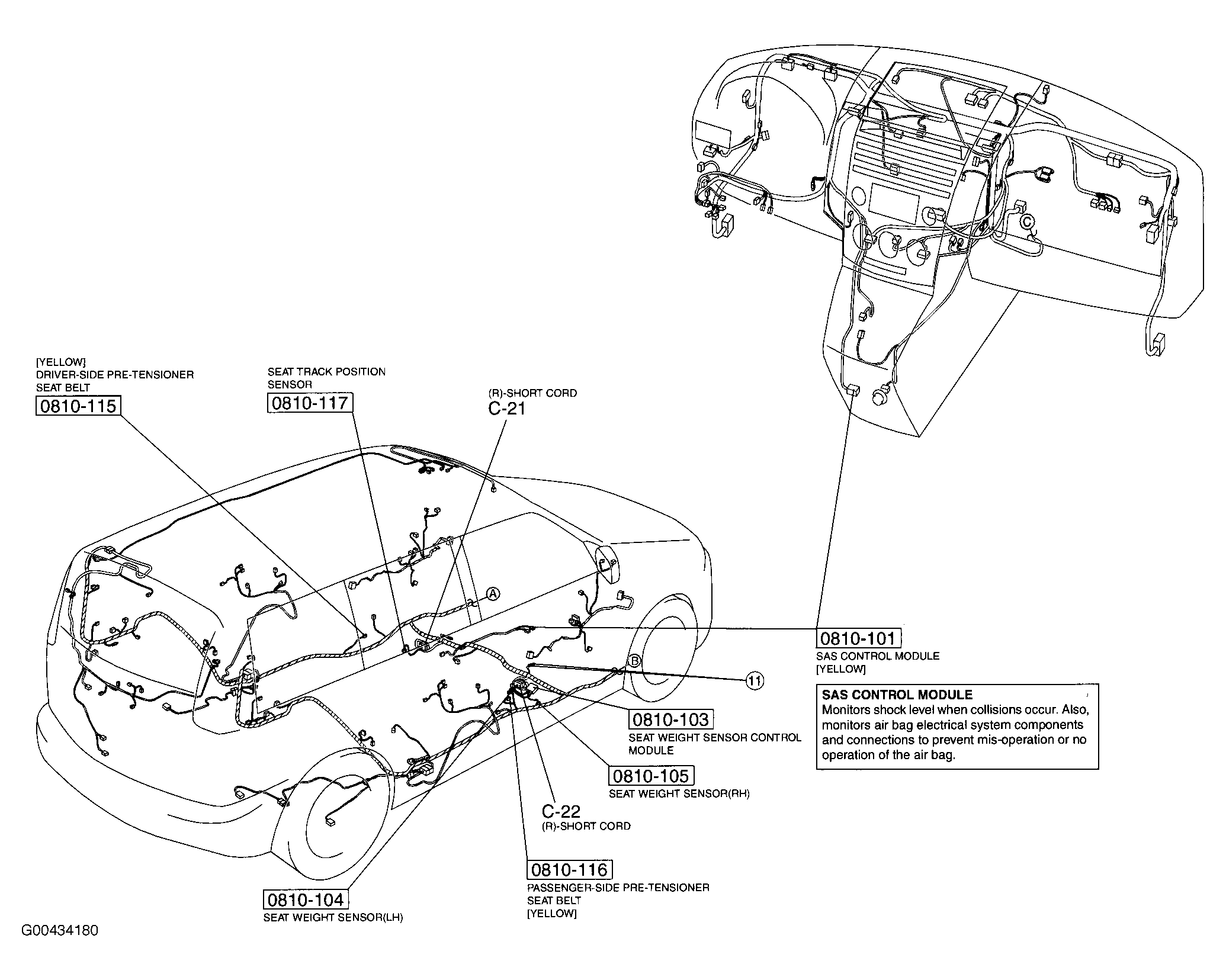

| SAS Control Module | Below center console. See Figure. |
| Seat Weight Sensor Control Module | Under front passenger's seat. See Figure. |
| Slide Door Lock (Left/Right) | Behind respective rear quarterpanel. See Figure. |

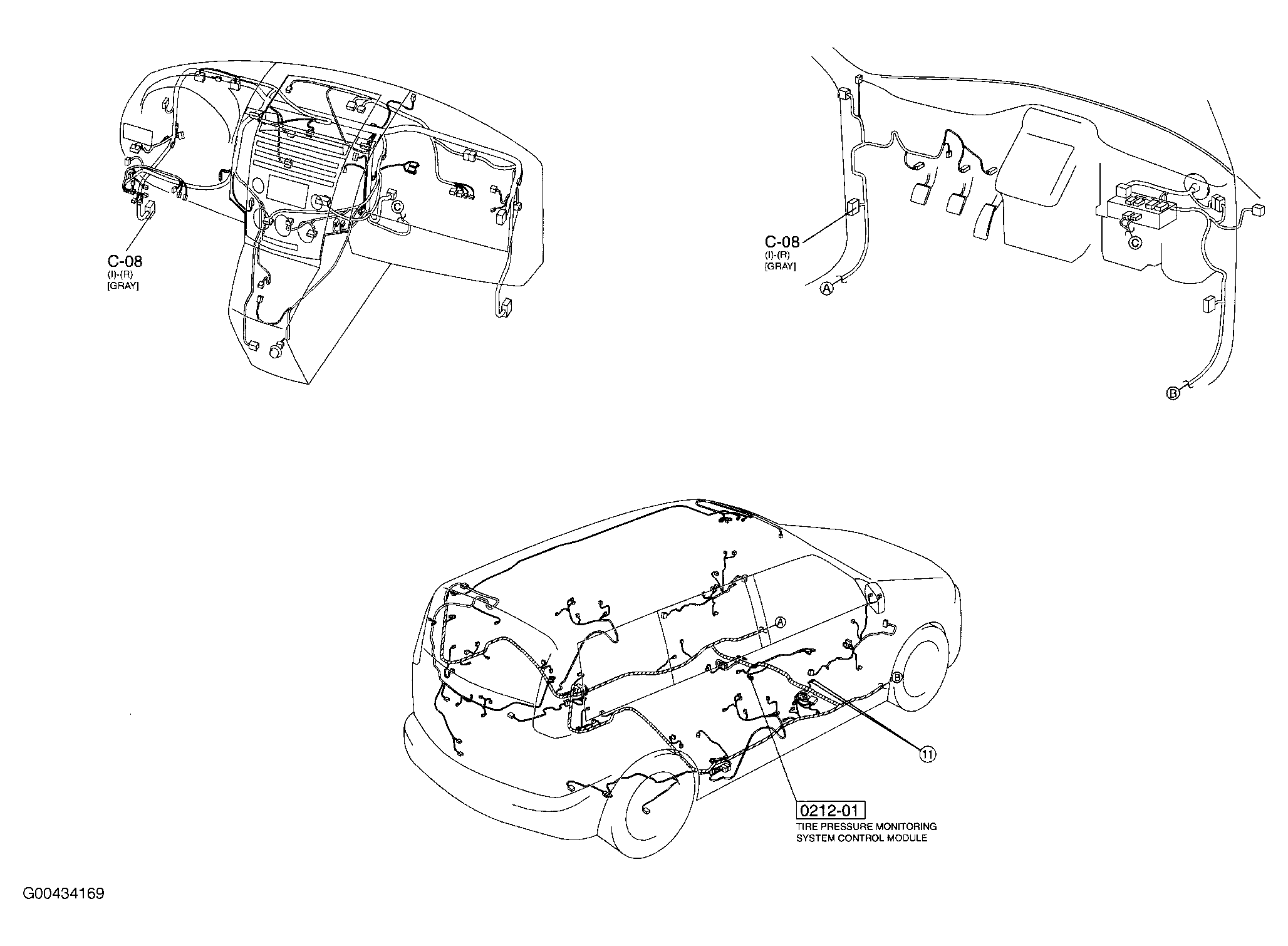

| Tire Pressure Monitoring System Control Module | Under center console. See Figure. |
