PCM Cover Installation Note

  1. Install with the PCM cover hooks B aligned with the PCM box holes at two points.

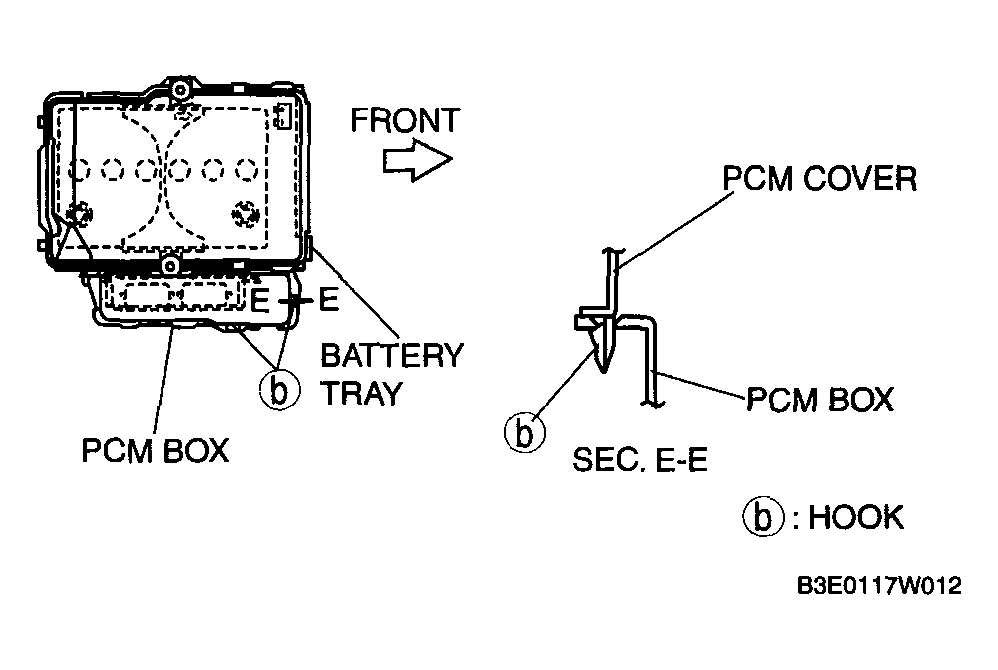

    Fig 1: Installing With PCM Cover
    G04315996Courtesy of MAZDA MOTORS CORP.
  2. Install the PCM cover to the PCM box hook.

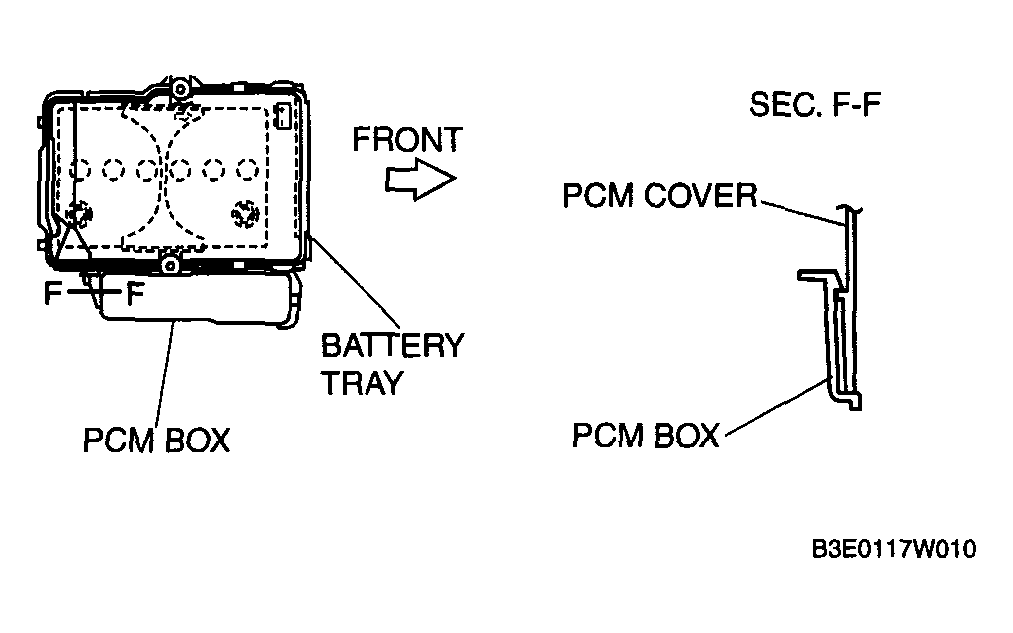

    Fig 2: Installing PCM Cover To PCM Box Hook
    G04315997Courtesy of MAZDA MOTORS CORP.
