Abs HU/Cm Removal/Installation: Notes

CAUTION:
  • When Replacing the HU/CM, the configuration procedure must be done before  removing the ABS HU/CM. If the configuration is not completed before removing the ABS HU/CM, the ABS will not work properly after installation of the ABS HU/CM.
  • Do not separate the ABS HU and ABS CM unless replacing them, otherwise the ABS HU/CM may not function properly. When replacing them with new ones, always perform procedures according to the instructions included with the new parts.
  • The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.
  1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Remove the reserve hose (MTX vehicles). (See RESERVE HOSE (MTX) REMOVAL NOTE ). (See CLUTCH PIPE AND CLUTCH RESERVE HOSE REMOVAL NOTE ). (See RESERVE HOSE (MTX) INSTALLATION NOTE ). (See CLUTCH PIPE AND CLUTCH RESERVE HOSE INSTALLATION NOTE ).
  3. Remove the reserve tank hose. (See MASTER CYLINDER REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See AIR BLEEDING ).

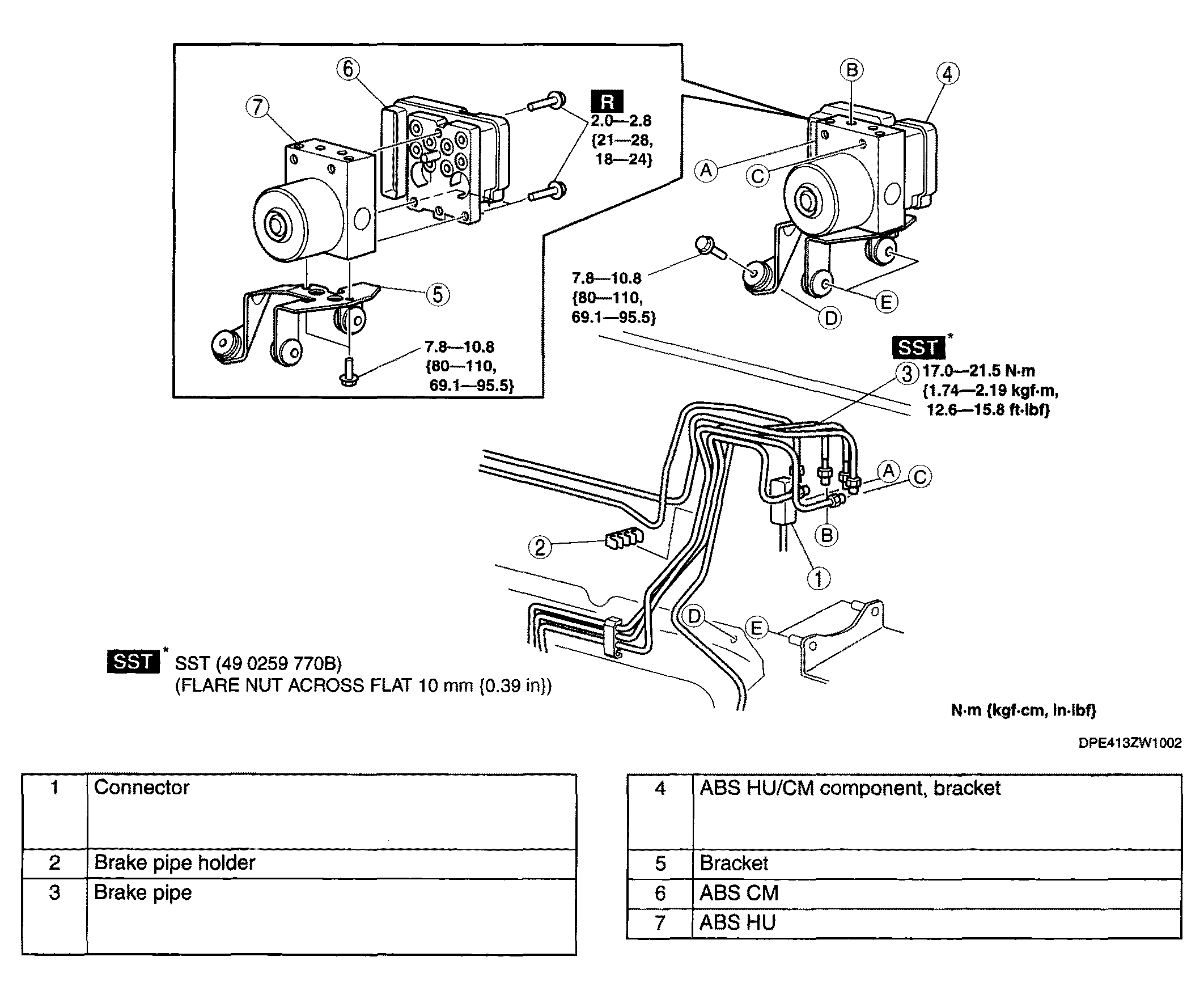

    Fig 1: ABS HU/CM & Torque Specification
    G04316357Courtesy of MAZDA MOTORS CORP.
