Reusing Windshield

WARNING:

Using the SST (piano wire) with bare hands can cause injury. Always wear gloves when using the SST (piano wire).

Avoiding the pin on the inside of the vehicle, insert the SST (piano wire) which has been cut to sufficient length.

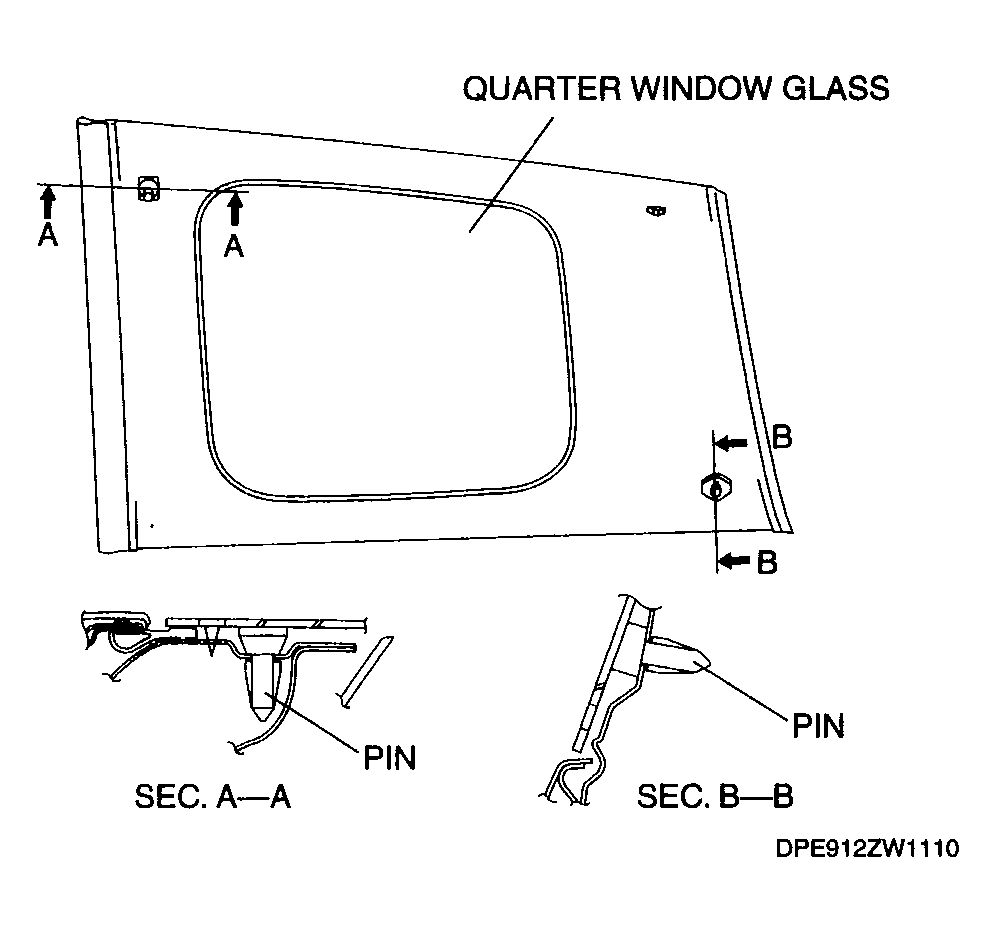

Fig 1: Locating Pin
Courtesy of MAZDA MOTORS CORP.
Wind each end of the SST (piano wire) around a bar.
NOTE:
- Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking due to localized heating.

  Fig 2: Locating SST
  Courtesy of MAZDA MOTORS CORP.
Secure one end of the SST (piano wire), and while pulling the other end, cut the sealant around the quarter window glass.

Fig 3: Cutting Sealant Around Window Glass
Courtesy of MAZDA MOTORS CORP.
Pull the quarter window glass outward and detach the pins from the body.
If a pin or spacer is damaged, remove it.
NOTE:
- Before removing the pins or spacers from the quarter window glass, place alignment marks on the quarter window glass.

  Fig 4: Locating Pin
  Courtesy of MAZDA MOTORS CORP.
