Except Driver's Side

  1. When inspecting the passenger-side and rear power windows, turn the power-cut switch to UNLOCK.
  2. Inspect for continuity between the power window main switch terminals.
    • If not as specified, replace the power window main switch.
  3. Connect battery positive voltage to terminal 1B and ground to terminal 1M. Verify that there is continuity.
    • If not as specified, replace the power window main switch.

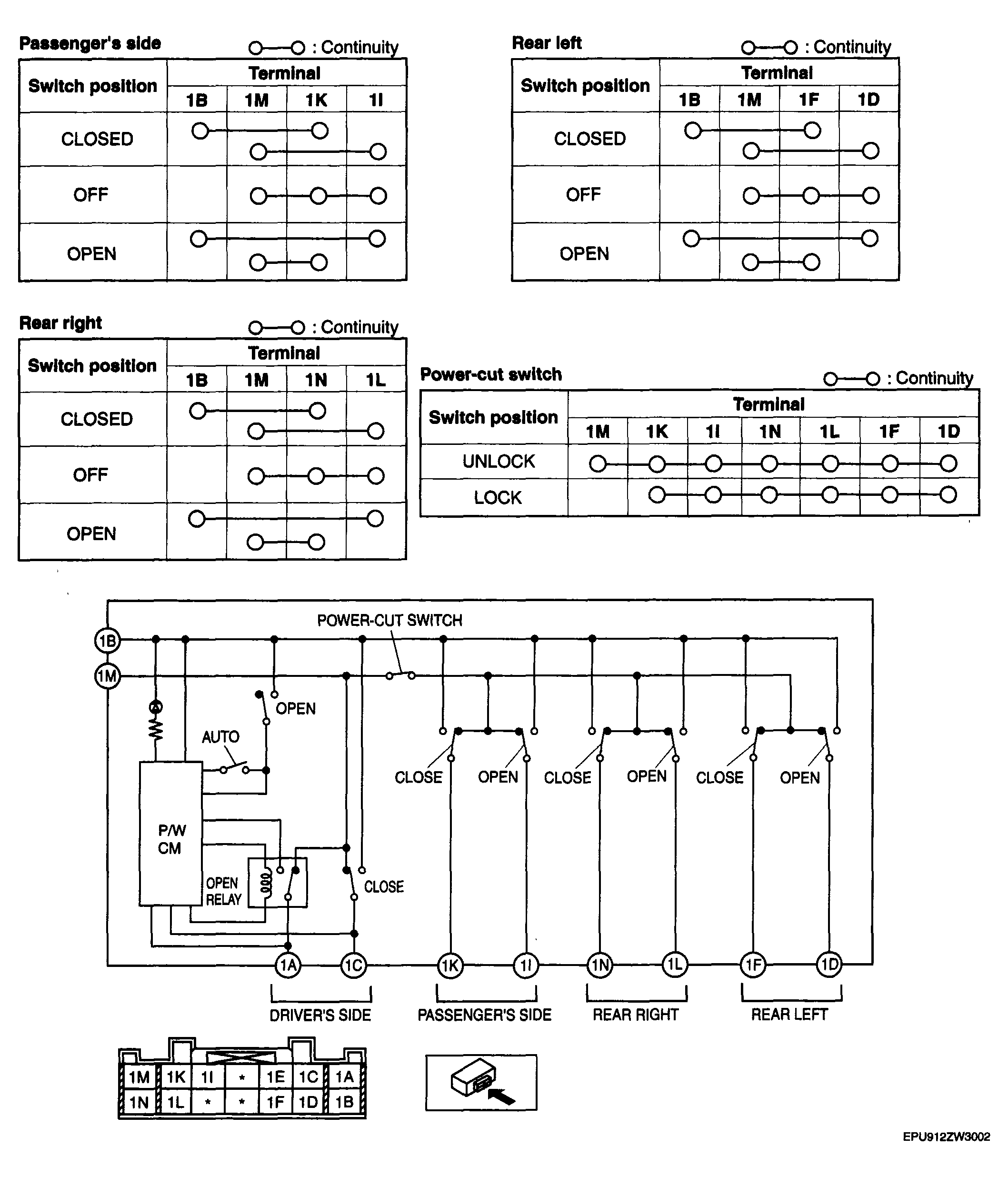

      Fig 1: Inspecting Power Window Main Switch (Except Driver's Side)
      G04317130Courtesy of MAZDA MOTORS CORP.
