Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
    • If not as indicated in the table, replace the power outer mirror switch.

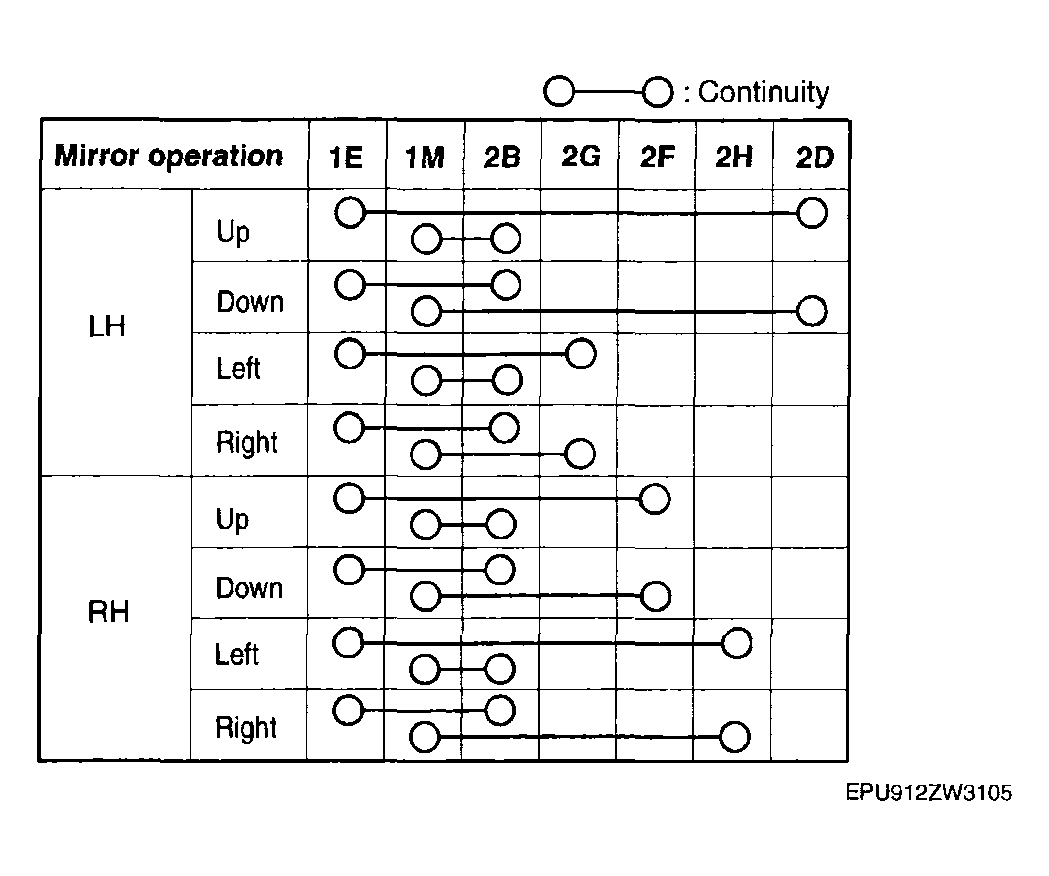

      Fig 1: Power Outer Mirror Switch Terminals Continuity Chart
      G04317181Courtesy of MAZDA MOTORS CORP.

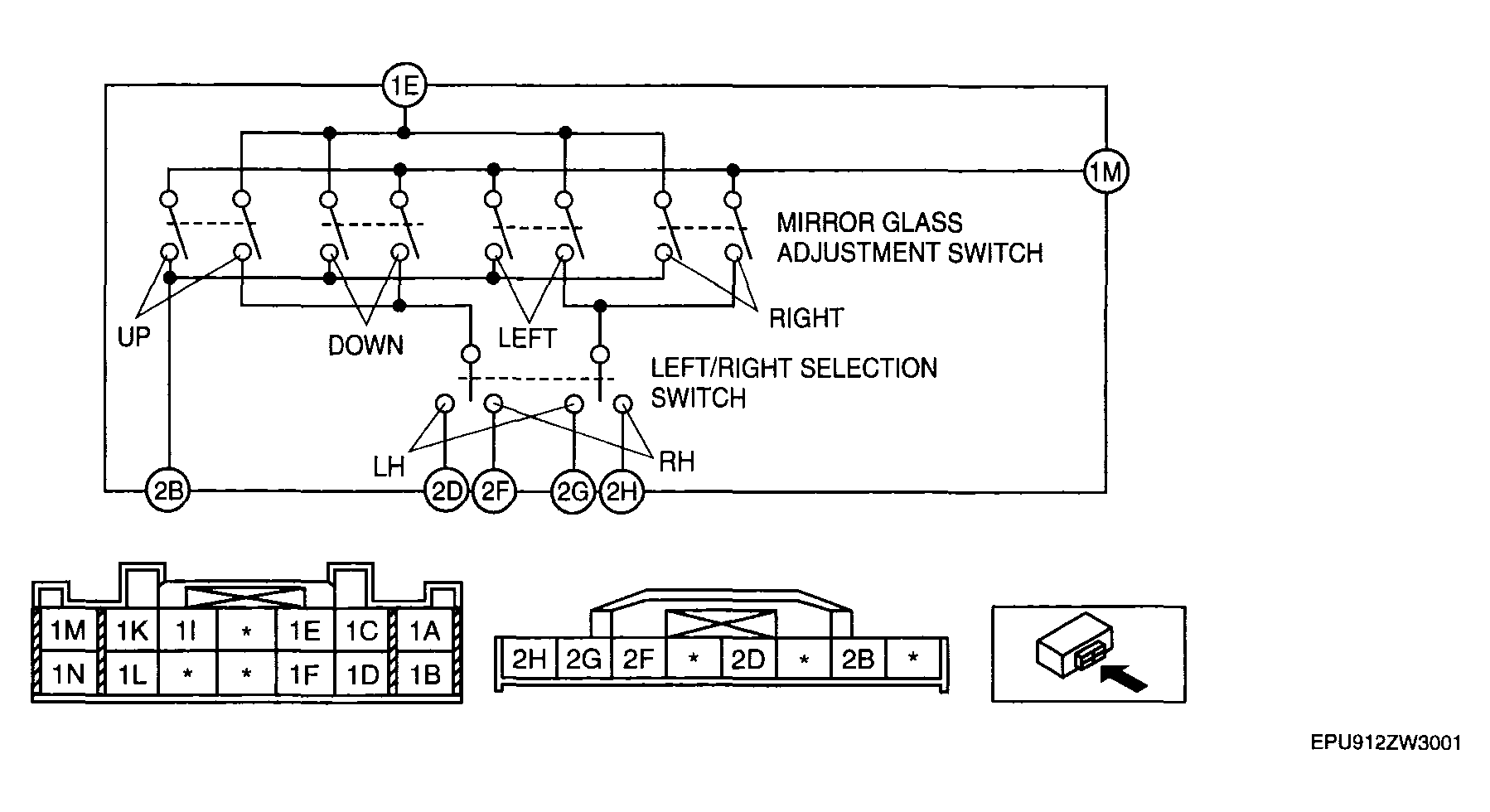

      Fig 2: Inspecting Continuity Between Power Outer Mirror Switch Terminals
      G04317182Courtesy of MAZDA MOTORS CORP.
