Ignition Switch Inspection

  1. Verify that the continuity between the ignition switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the ignition switch.

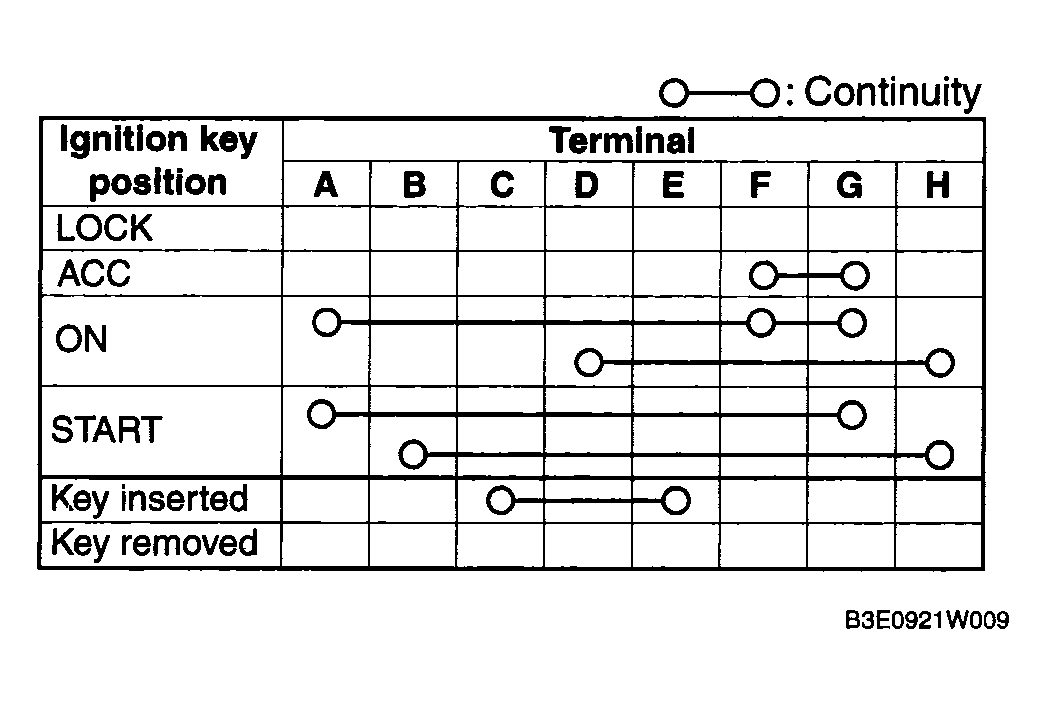

      Fig 1: Ignition Switch Continuity Table
      G04317491Courtesy of MAZDA MOTORS CORP.

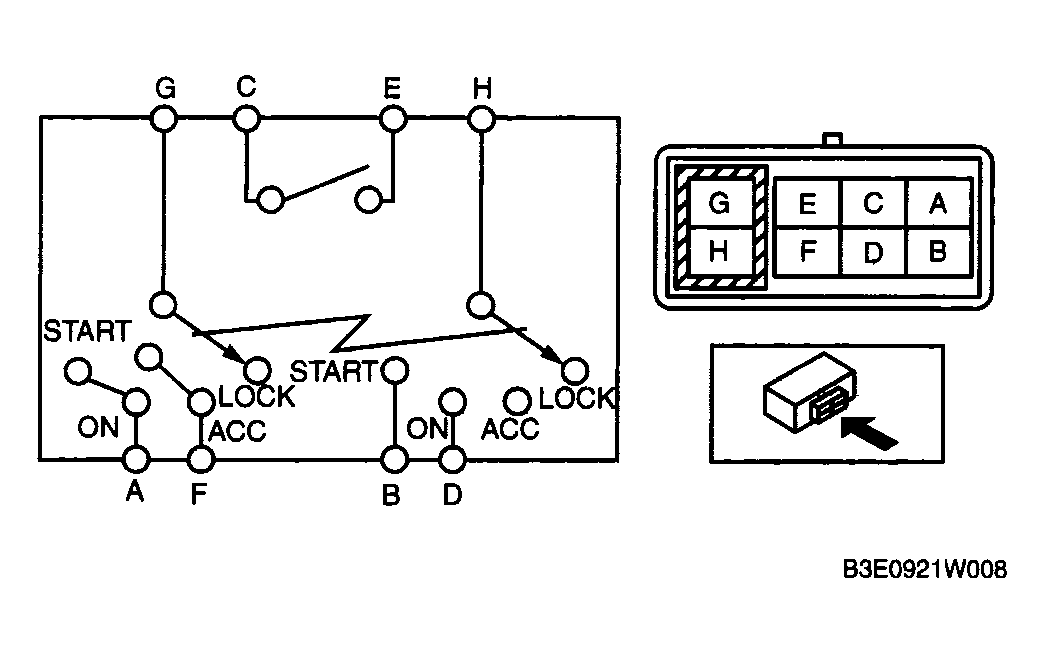

      Fig 2: Identifying Ignition Switch Terminal Connector
      G04317492Courtesy of MAZDA MOTORS CORP.
