Ignition Coil Removal/Installation

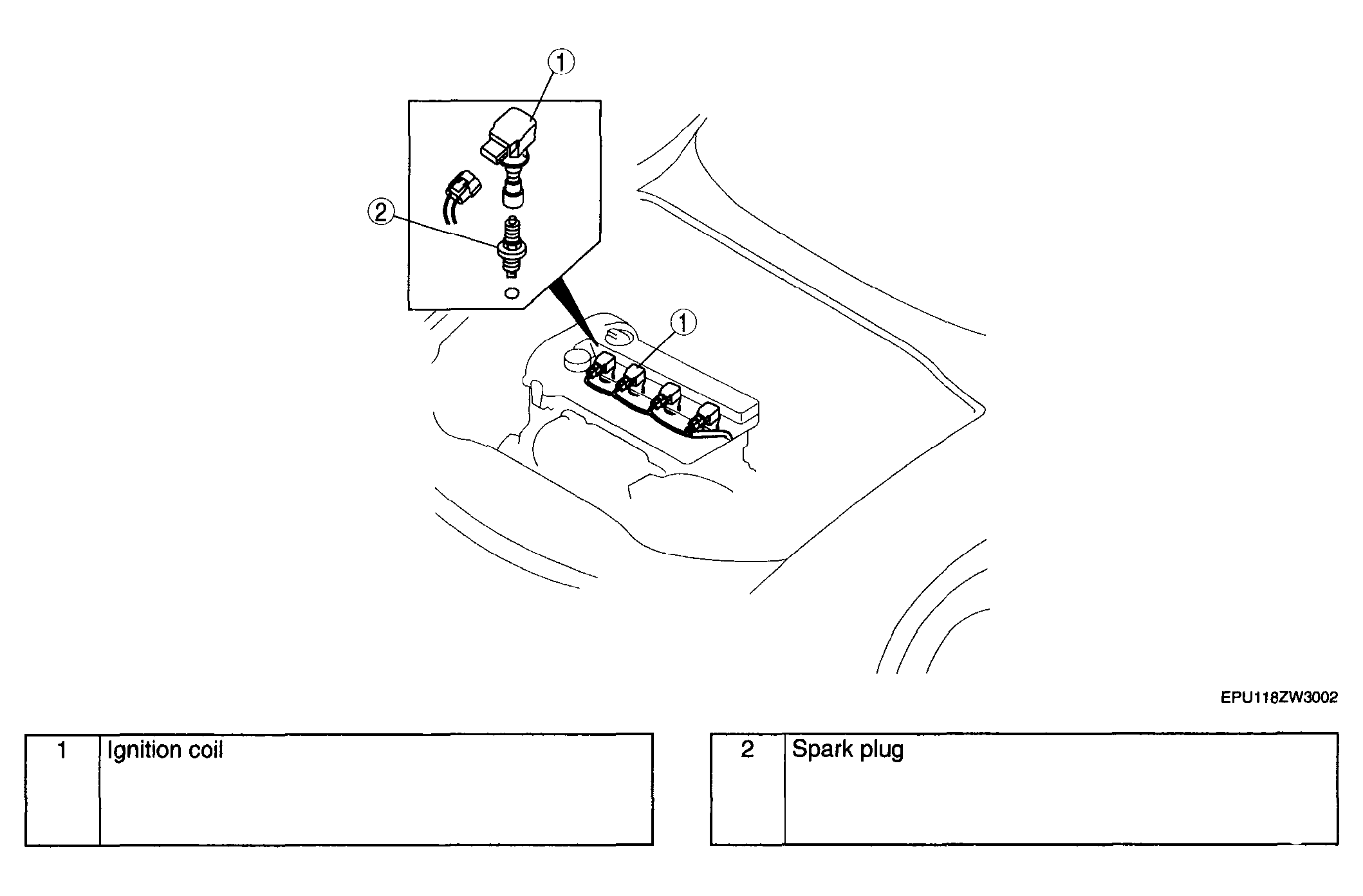

Fig 1: Identifying Ignition Coil Components Location
G04316021Courtesy of MAZDA MOTORS CORP.


  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
    IGNITION COIL REMOVING ORDER

    1 Connector
    2 Ignition coil

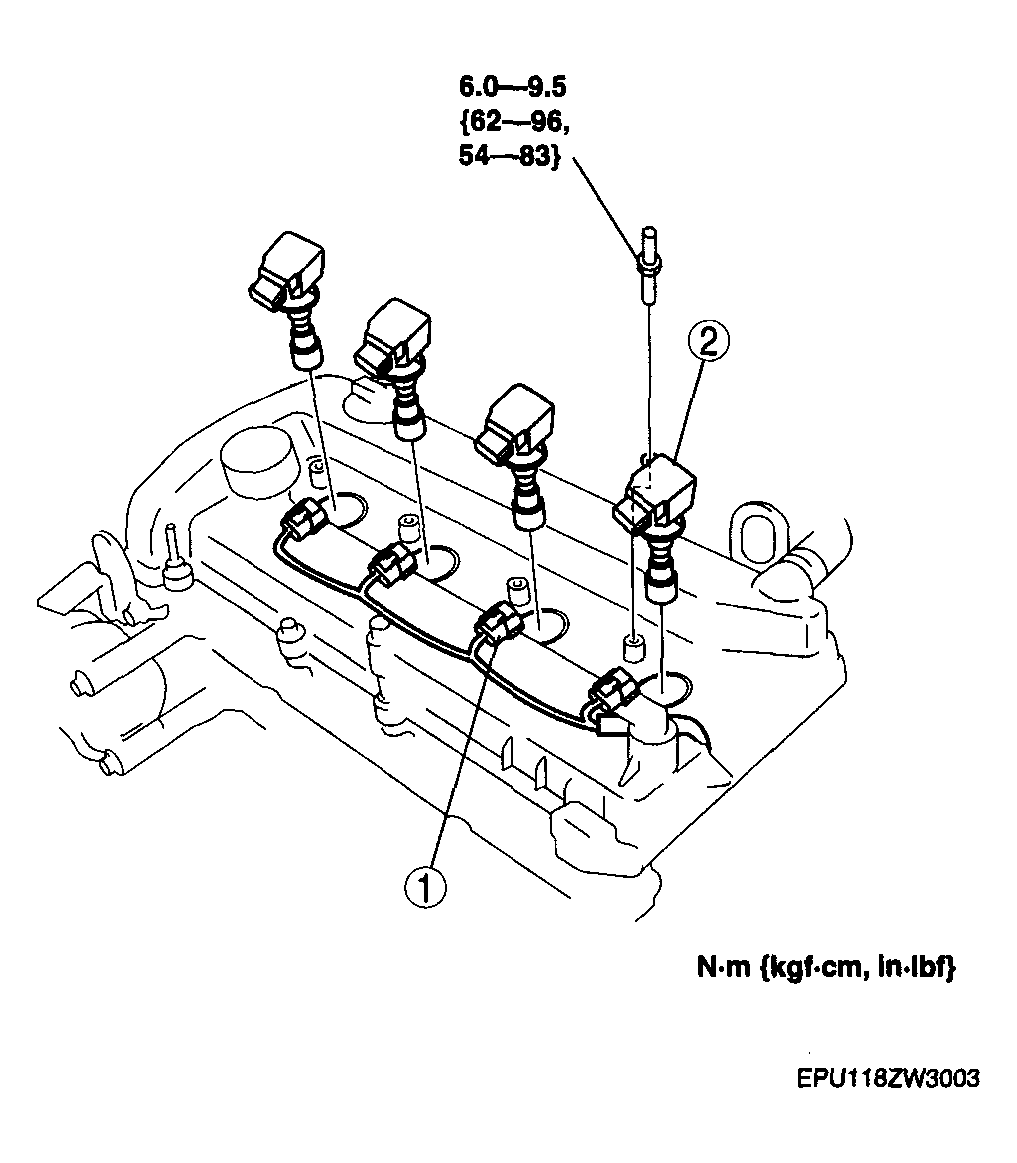

    Fig 1: Ignition Coil & Torque Specification
    G04316022Courtesy of MAZDA MOTORS CORP.
