Front Door Key Cylinder Switch Inspection

Inspect for continuity between the front door key cylinder switch terminals.

• If not as specified, replace the front door latch and lock actuator.

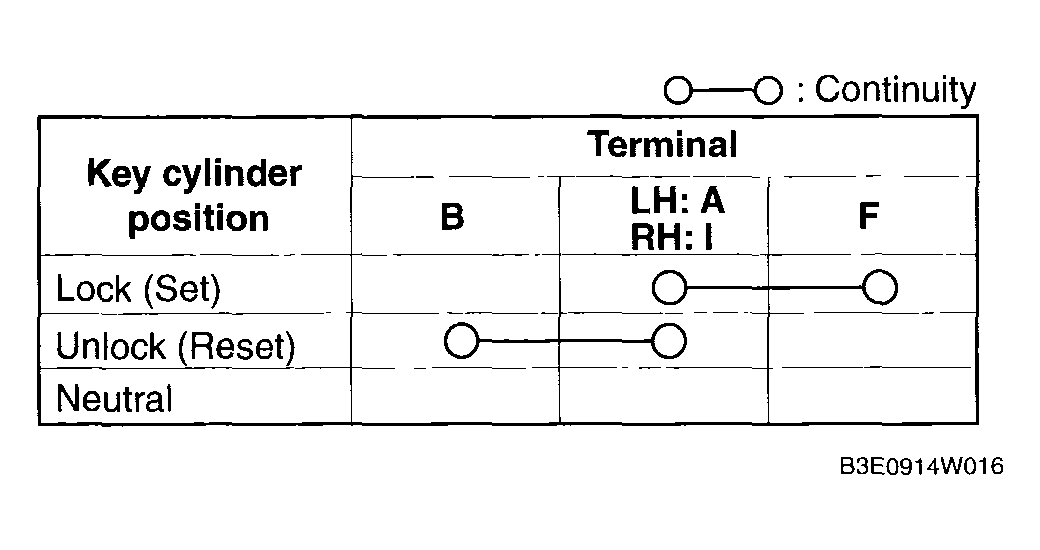

  Fig 1: Continuity Reference Chart

  Courtesy of MAZDA MOTORS CORP.

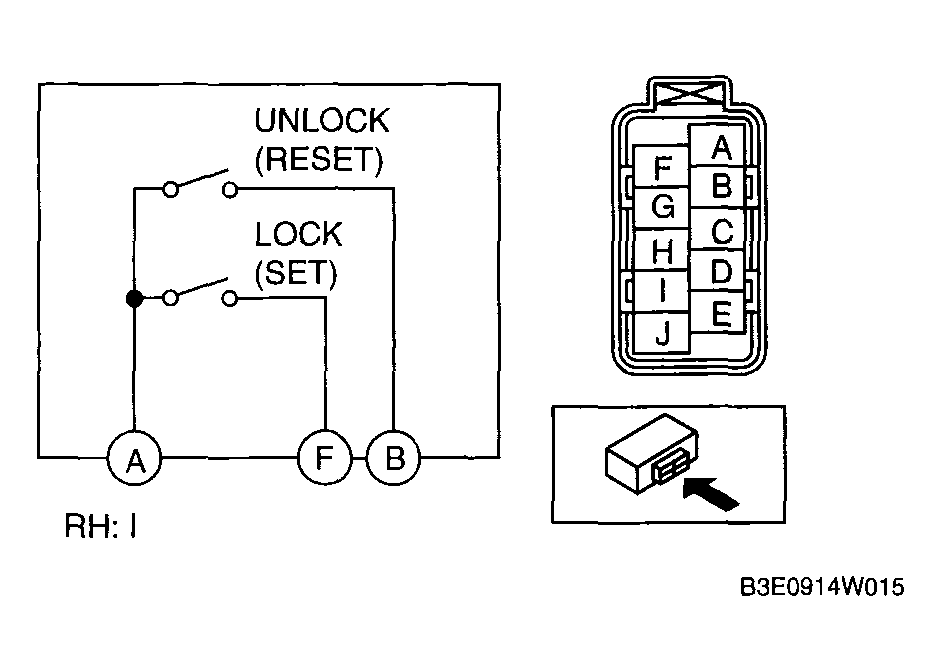

  Fig 2: Inspecting Continuity Between Front Door Key Cylinder Switch Terminals

  Courtesy of MAZDA MOTORS CORP.
