Automatic Transaxle Control System Wiring Diagram

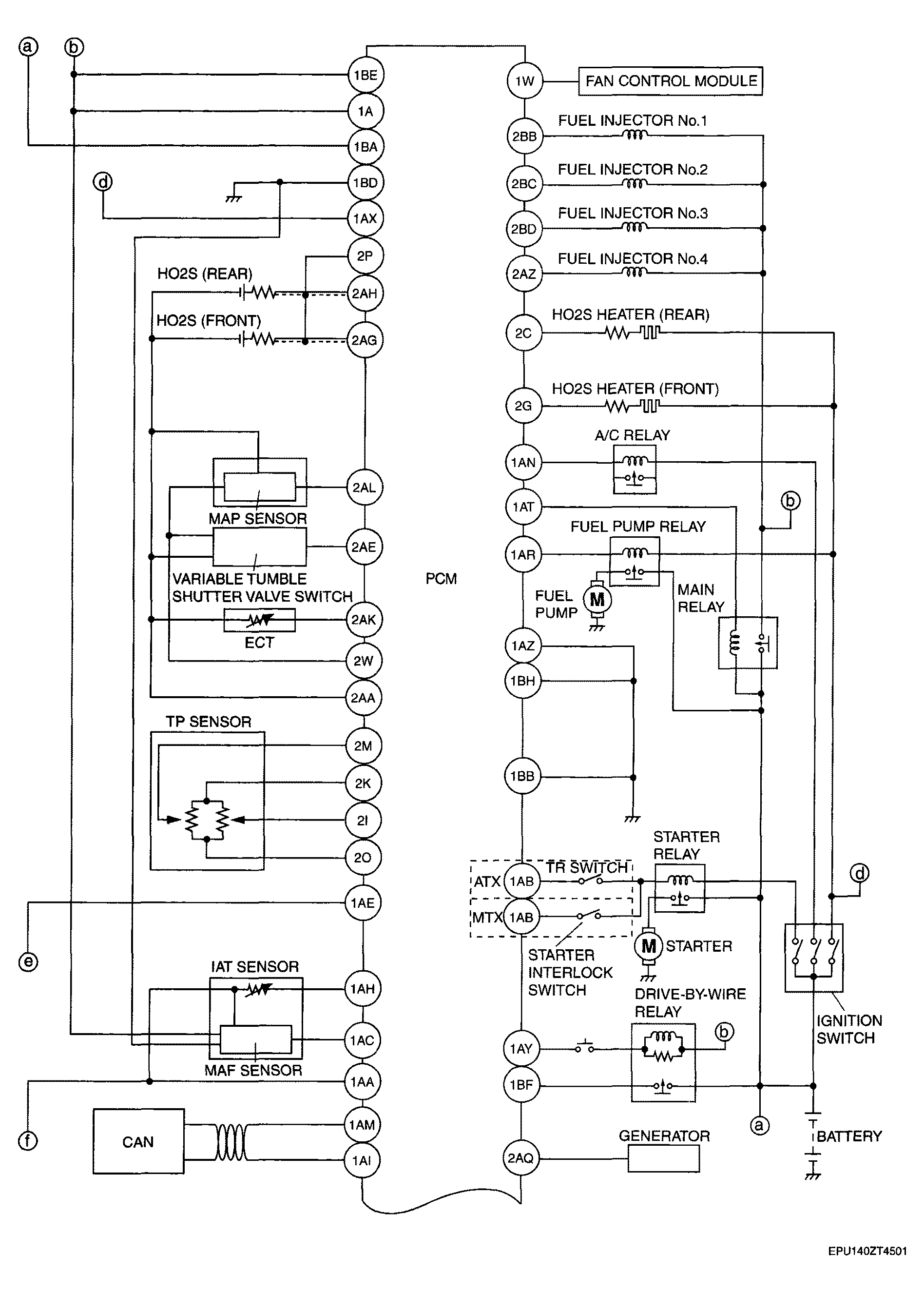

Fig 1: Automatic Transaxle Control System Wiring Diagram [FN4A-EL] (1 Of 2)
G04316398Courtesy of MAZDA MOTORS CORP.

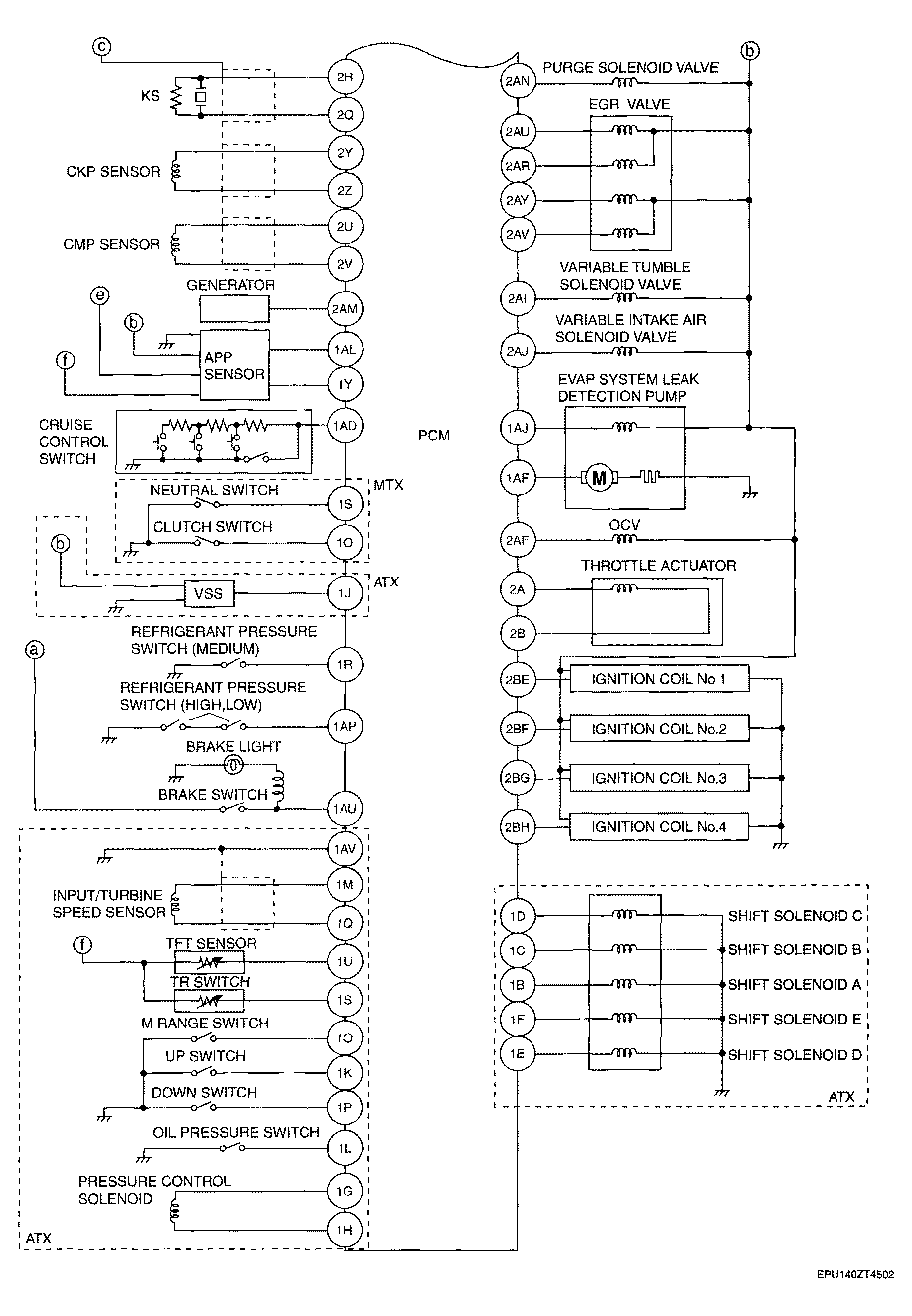

Fig 2: Automatic Transaxle Control System Wiring Diagram [FN4A-EL] (2 Of 2)
G04316399Courtesy of MAZDA MOTORS CORP.
