DTC P0768: Notes
DTC P0768 [FN4A-EL] DETECTION CONDITION CHART
| DTC P0768 |
Shift solenoid D malfunction (electrical) |
| DETECTION CONDITION |
- If PCM detects either of the following conditions while driving in 4GR at D range, the PCM determines that shift solenoid D circuit has a malfunction.
- Shift solenoid D voltage stuck at B+
after engine start
- Shift solenoid D voltage stuck at 0 V
after engine start
Diagnostic support note:
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle.
- A PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The AT warning light illuminates.
- The DTC is stored in the PCM memory.
|

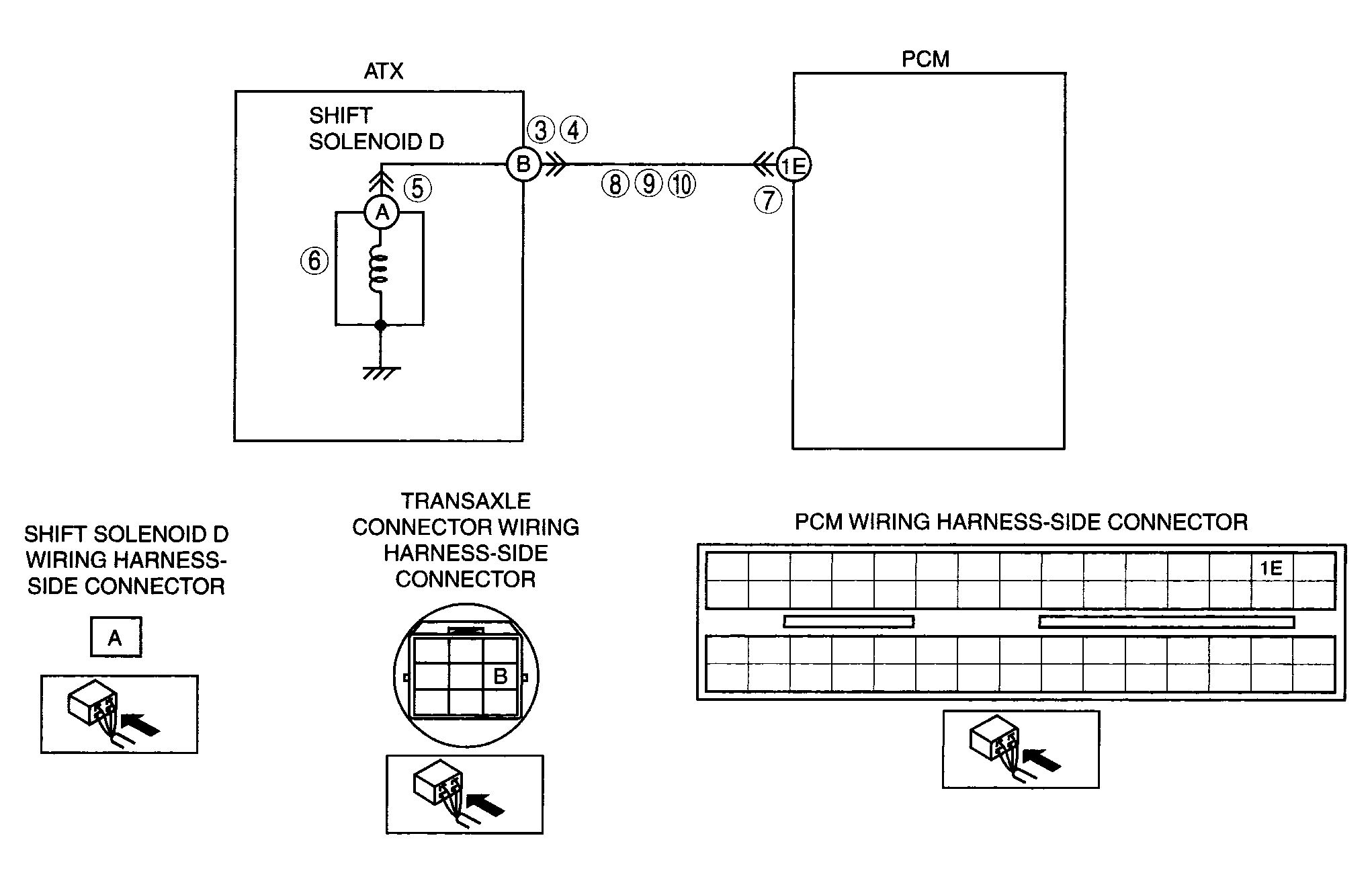

| POSSIBLE CAUSE |
- Shift solenoid D malfunction
- Short to ground in wiring harness between ATX terminal B and PCM terminal 1E
- Short to power supply in wiring harness between ATX terminal B and PCM terminal 1E
- Open circuit in wiring harness between shift solenoid D terminal A and ATX terminal B
- Open circuit in wiring harness between ATX terminal B and PCM terminal 1E
- Damaged connector between shift solenoid D and PCM
- PCM malfunction
|
|
|
