DTC P0763: Notes

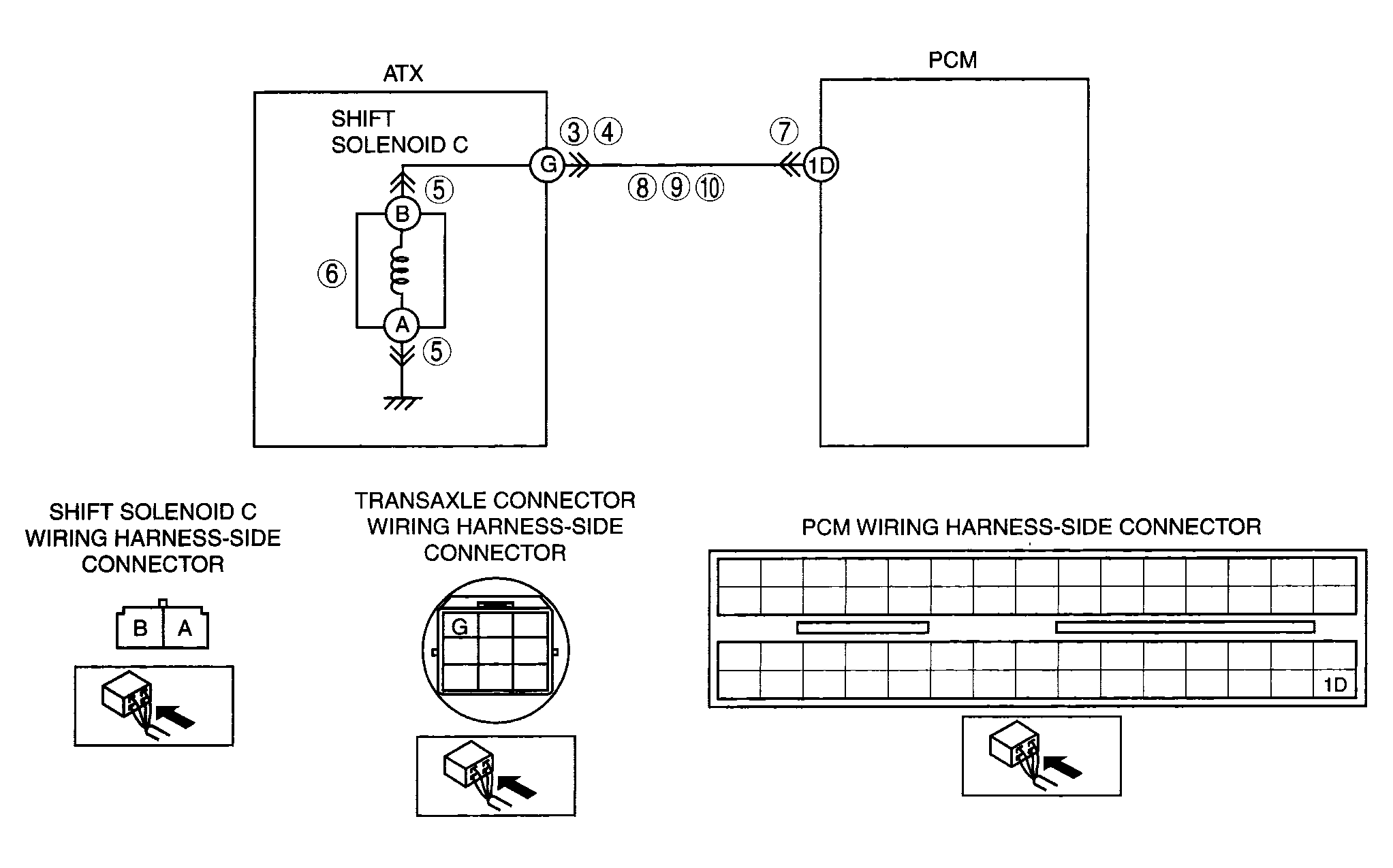

DTC P0763 [FN4A-EL] DETECTION CONDITION CHART
| DTC P0763 |
Shift solenoid C malfunction (electrical) |
| DETECTION CONDITION |
- If the PCM detects either of the following conditions, the PCM determines that shift solenoid C circuit has a malfunction.
- Shift solenoid C voltage stuck at B+
after engine start
- Shift solenoid C voltage stuck at 0 V
after engine start
Diagnostic support note:
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle.
- A PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The AT warning light illuminates.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Shift solenoid C malfunction
- Short to ground in wiring harness between ATX terminal G and PCM terminal 1D
- Short to power supply in wiring harness between ATX terminal G and PCM terminal 1D
- Open circuit in wiring harness between shift solenoid C terminal B and ATX terminal G
- Open circuit in wiring harness between ATX terminal G and PCM terminal 1D
- Open circuit in wiring harness between shift solenoid C terminal A and body ground
- Damaged connector between shift solenoid C and PCM
- PCM malfunction
|
|
|
