DTC P0715: Notes
DTC P0715 [FN4A-EL] DETECTION CONDITION CHART
| DTC P0715 |
Input/turbine speed sensor circuit malfunction |
| DETECTION CONDITION |
- When all conditions below are satisfied and 0.7 s or more
have passed.
- D or M range of TR switch input
- Driving vehicle at vehicle speed of 41 km/h {25 mph} or more
- Input/turbine speed sensor signal not input
Diagnostic support note:
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction conditions during the first drive cycle.
- A PENDING CODE is not available.
- FREEZE FRAME DATA is available.
- The AT warning light illuminates.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Input/turbine speed sensor malfunction

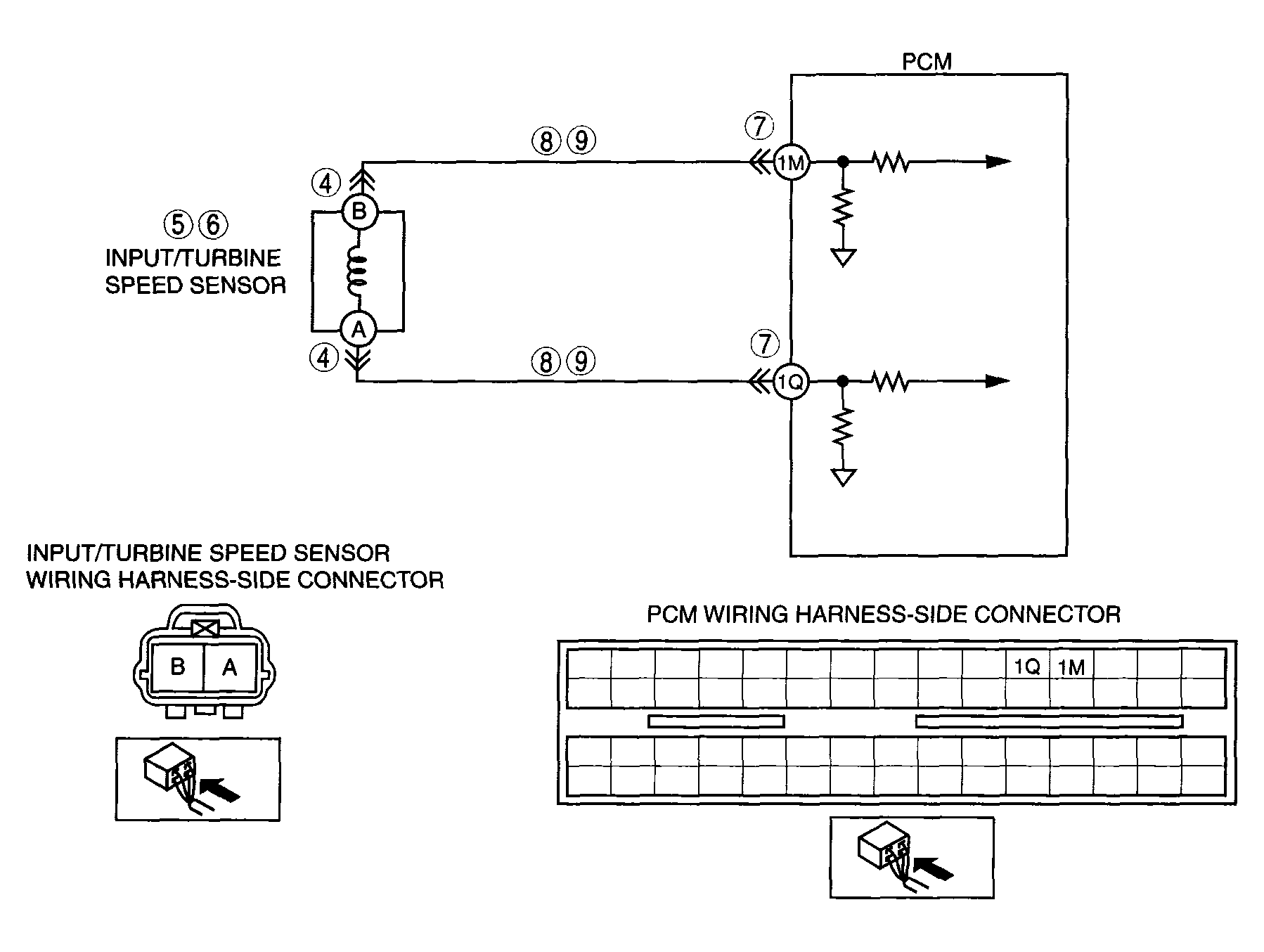

- Short to ground in wiring harness between input/turbine speed sensor terminal A and PCM terminal 1Q
- Short to ground in wiring harness between input/turbine speed sensor terminal B and PCM terminal 1M
- Open circuit in wiring harness between input/turbine speed sensor terminal A and PCM terminal 1Q
- Open circuit in wiring harness between input/turbine speed sensor terminal B and PCM terminal 1M
- Damaged connectors between input/turbine speed sensor and PCM
- PCM malfunction
|
|
|
