DTC P0707: Notes

• When all conditions below are satisfied and 100 s or more  have passed.
  • Vehicle speed 20 km/h {12 mph} or more
  • Engine speed 530 RPM or more
  • Voltage at PCM terminal 1S 0.5 V or less

Diagnostic support note:

• This is a continuous monitor (CCM).
• The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
• A PENDING CODE is not available.
• FREEZE FRAME DATA is available.
• The AT warning light illuminates.
• The DTC is stored in the PCM memory.

• TR switch malfunction

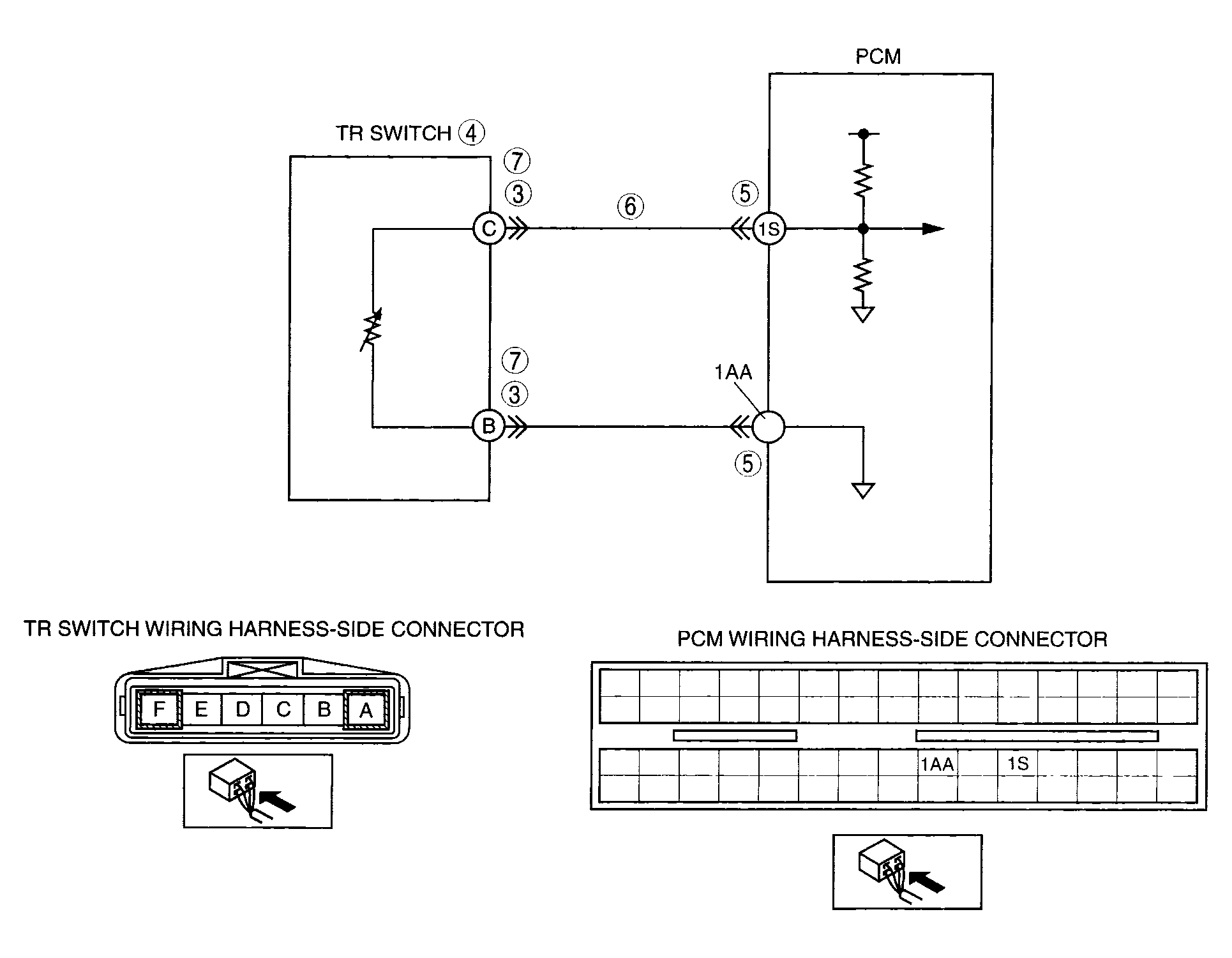

• Short to ground in wiring harness between TR switch terminal C and PCM terminal 1S
• TR switch signal and TR switch ground circuits shorted each other
• PCM malfunction
