ABS HU/CM Component, Bracket Removal Note

  1. As shown in the figure, move the bracket in the direction of the arrow and remove the ABS HU/CM component and bracket from the body.

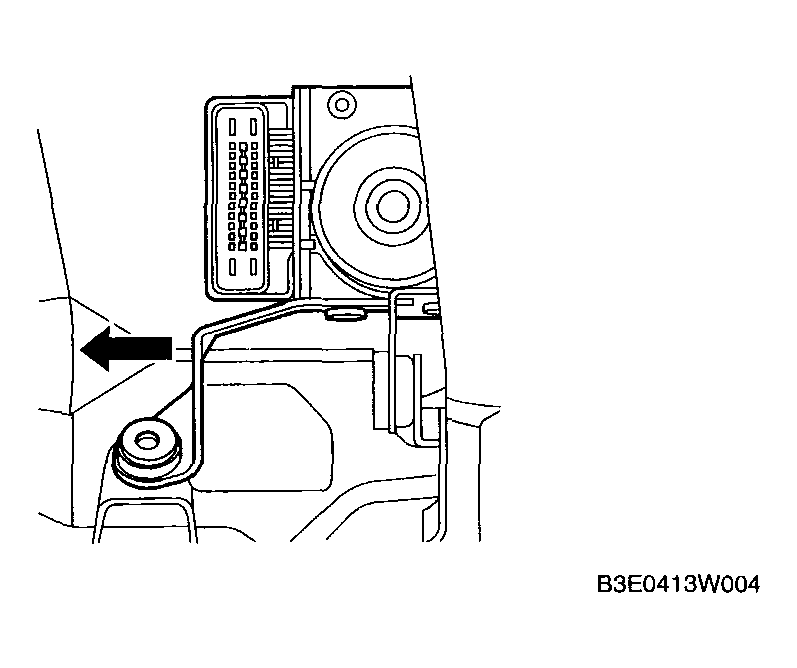

    Fig 1: Moving Bracket
    G04316360Courtesy of MAZDA MOTORS CORP.
