Passenger's Side

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the cover, then remove the screw.
  4. Detach clips B using a tape-wrapped flathead screwdriver.
  5. Detach tab A by pulling it in the direction of the arrow, and remove the switch panel from the door trim.
  6. Disconnect the power window subswitch connector.

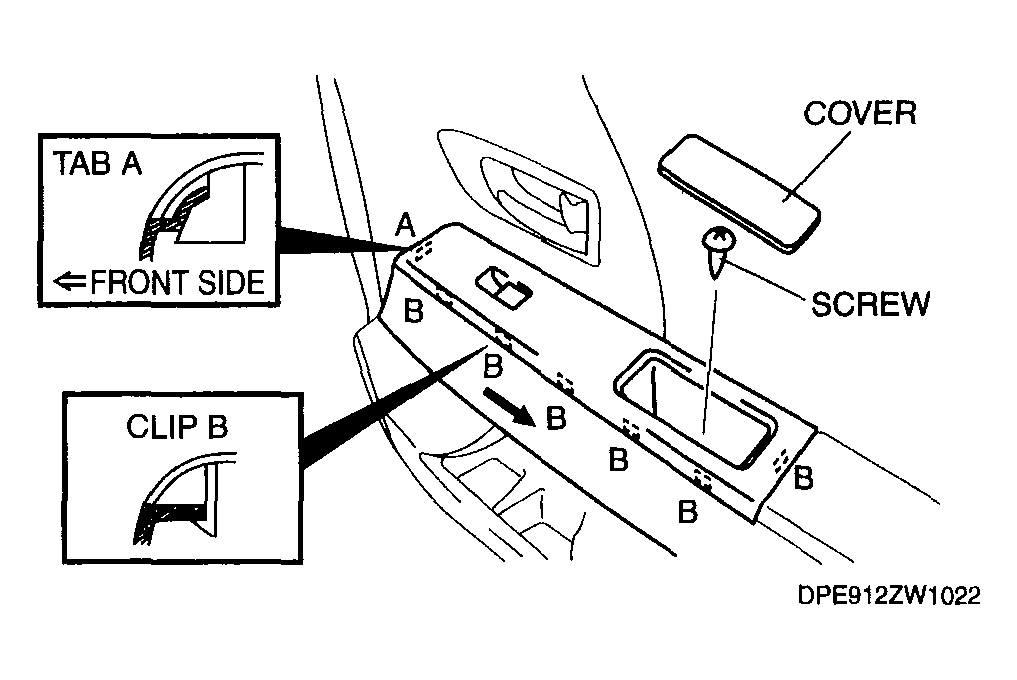

    Fig 1: Removing Cover And Screws
    G04317131Courtesy of MAZDA MOTORS CORP.
  7. Remove the screws, then remove the power window subswitch.
  8. Install in the reverse order of removal.

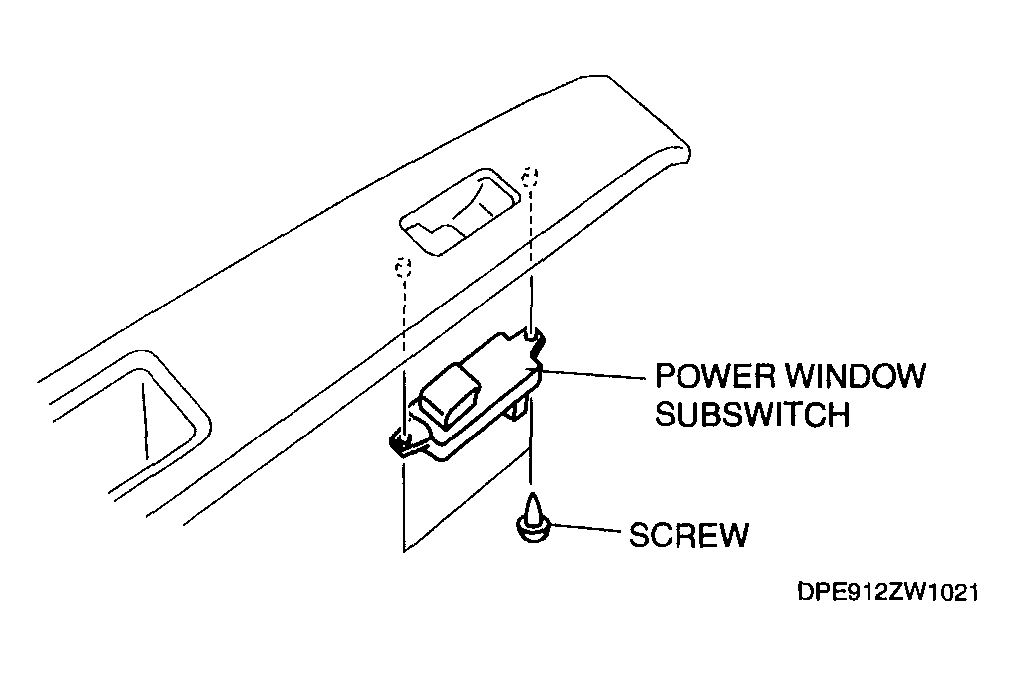

    Fig 2: Removing Power Window Subswitch (Passenger's Side)
    G04317132Courtesy of MAZDA MOTORS CORP.
