Outer Mirror Glass Removal

  1. Press area A of the mirror glass so that area B moves outward.

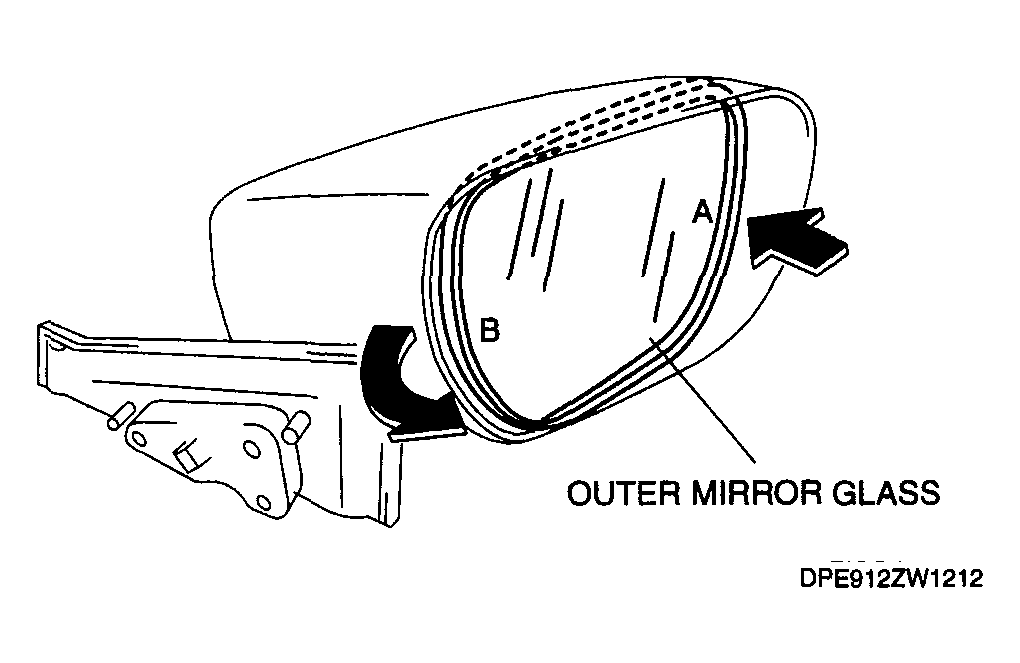

    Fig 1: Removing Outer Mirror Glass
    G04317173Courtesy of MAZDA MOTORS CORP.
  2. Detach pin A while lifting up the inside of the mirror glass holder.
  3. Pull the mirror glass holder and remove pins B.
  4. Disconnect the connectors, (vehicles with heated outer mirrors)
  5. Remove the mirror glass holder and the outer mirror glass as a single unit.

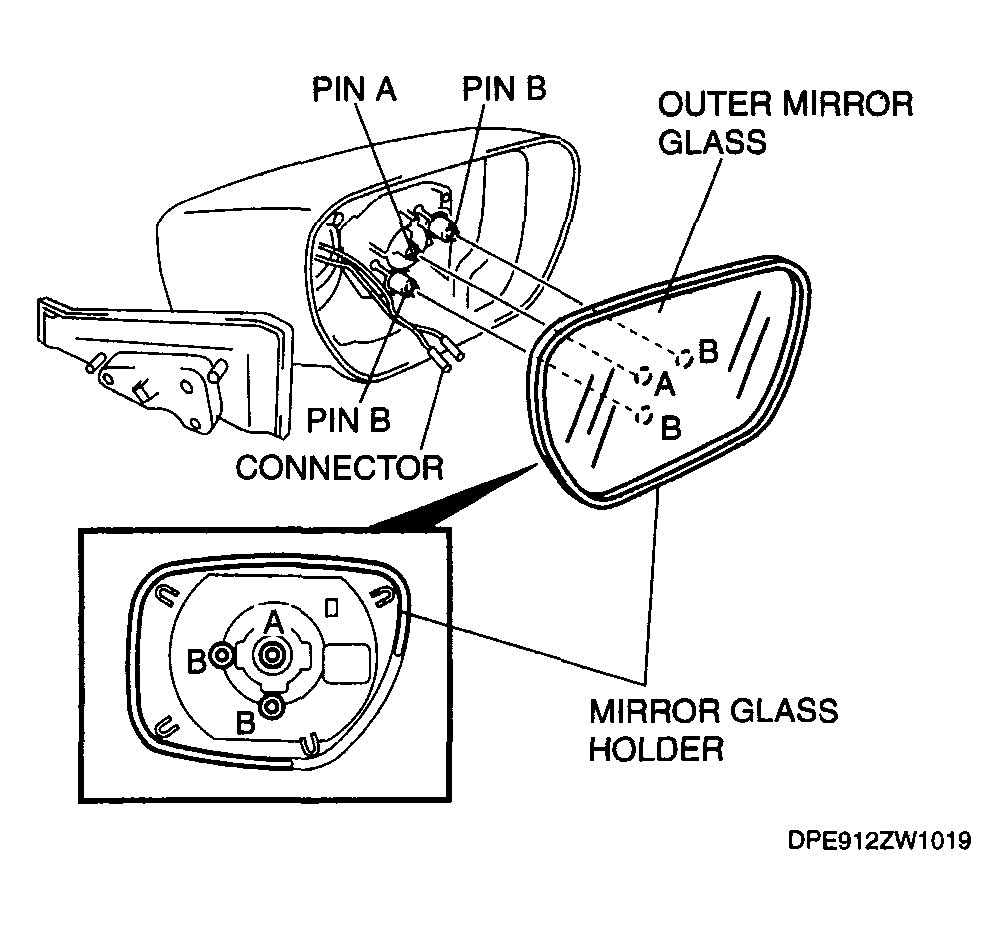

    Fig 2: Removing Pins A And B
    G04317174Courtesy of MAZDA MOTORS CORP.
