Keyless Entry System Wiring Diagram [Keyless Entry System]

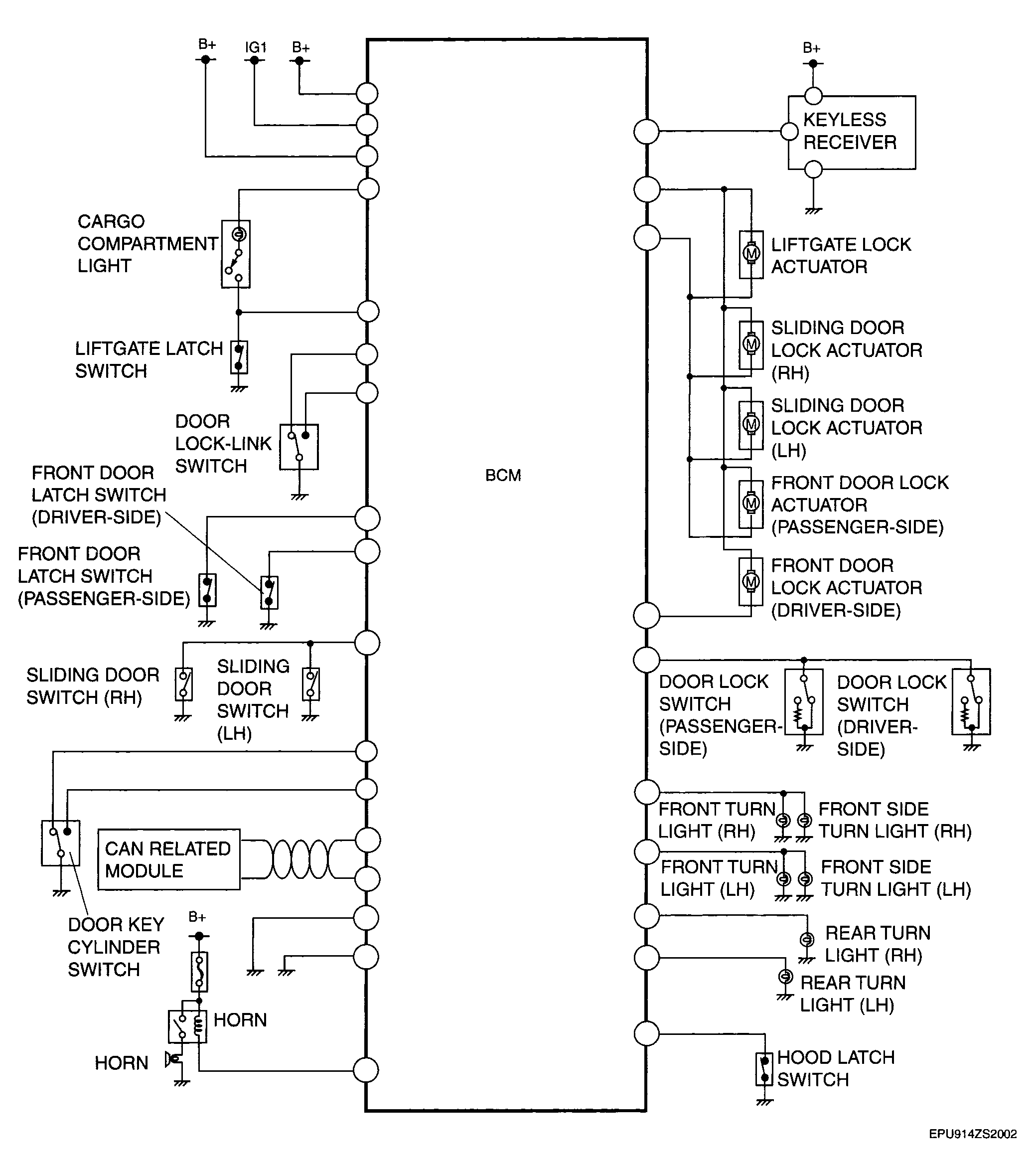

Fig 1: Keyless Entry System Wiring Diagram

G04317029

Courtesy of MAZDA MOTORS CORP.
