Symptom Troubleshooting (Keyless Entry System)
>>
Keyless Entry System On-Board Diagnosis [Keyless Entry System]
Keyless Entry System On-Board Diagnosis [Keyless Entry System]
NOTE:
"All doors" includes the liftgate.

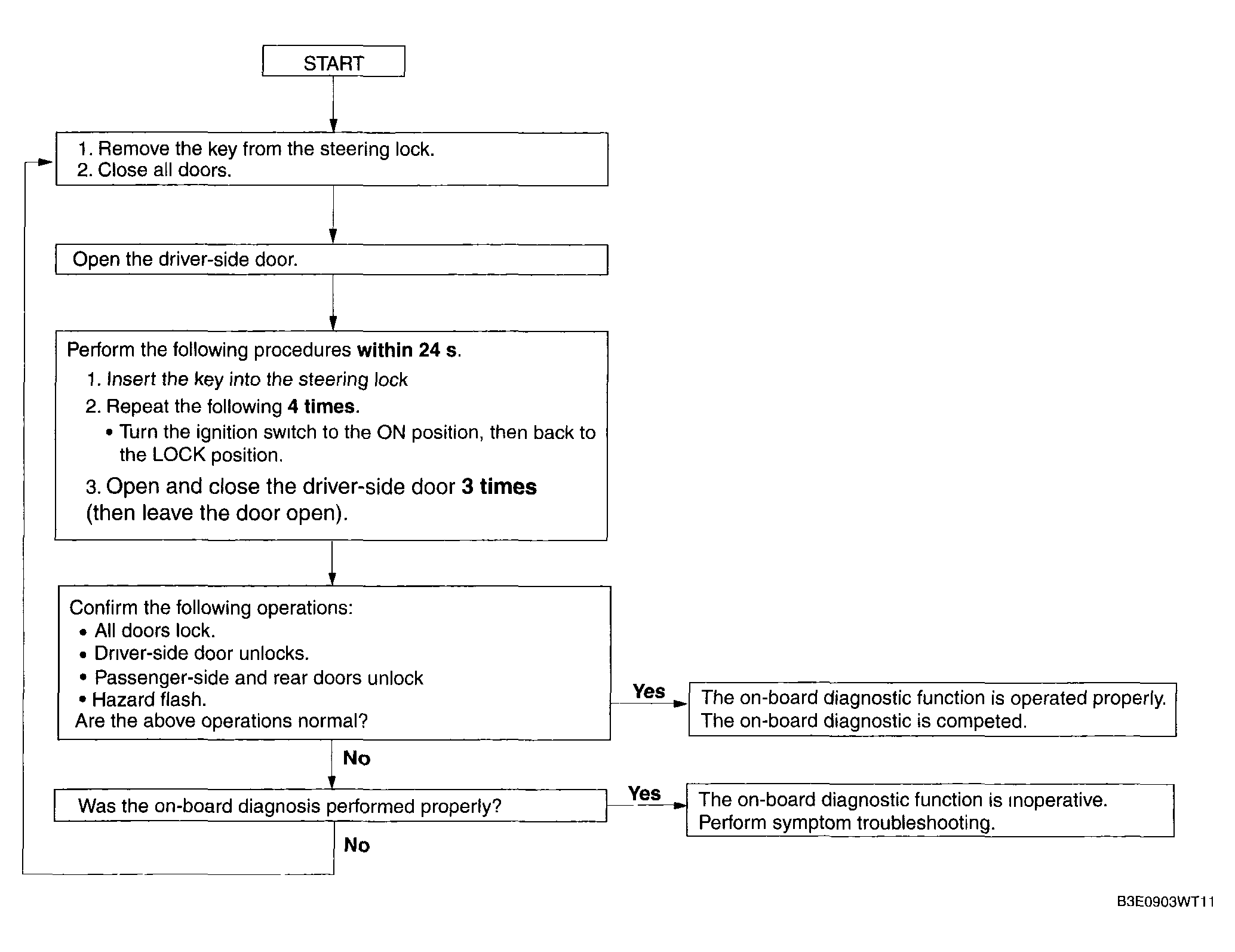

Fig 1: Troubleshooting Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
