Driver-side Front Door

  1. Inspect for continuity between the door lock-link switch terminals.
    • If not as specified, replace the front door latch and lock actuator.

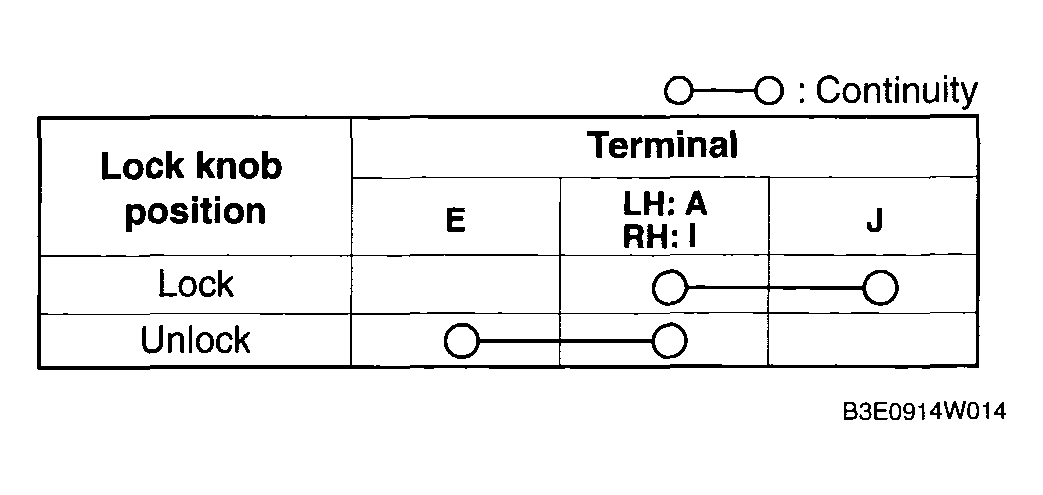

      Fig 1: Continuity Reference Chart
      G04317229Courtesy of MAZDA MOTORS CORP.

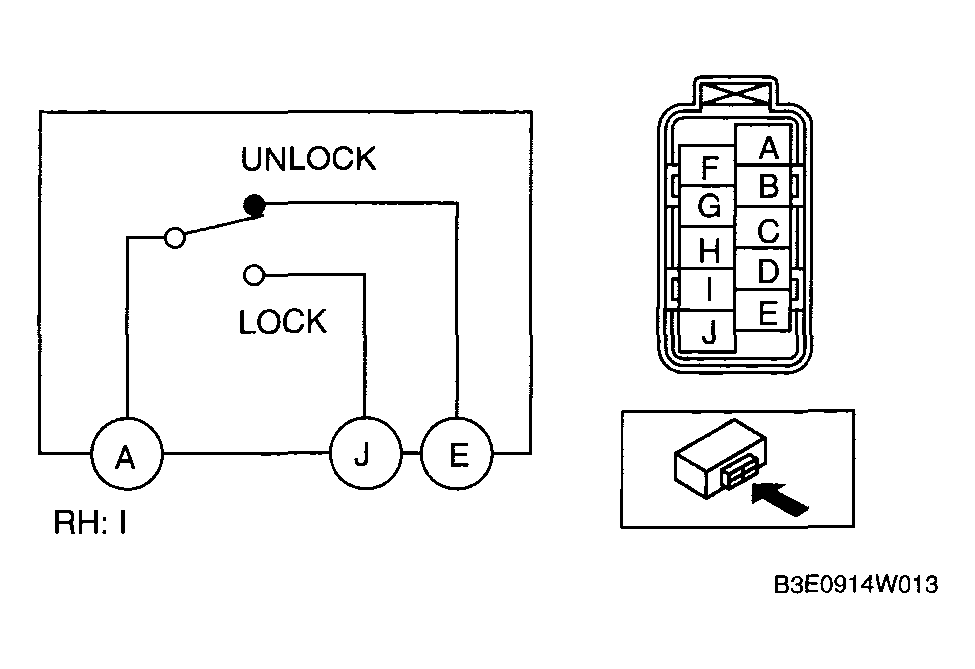

      Fig 2: Inspecting Door Lock-Link Switch
      G04317230Courtesy of MAZDA MOTORS CORP.
