LCD Unit Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION ).
  4. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION ).
  5. Remove the center panel unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION ).
  6. Remove in the order indicated in the table.

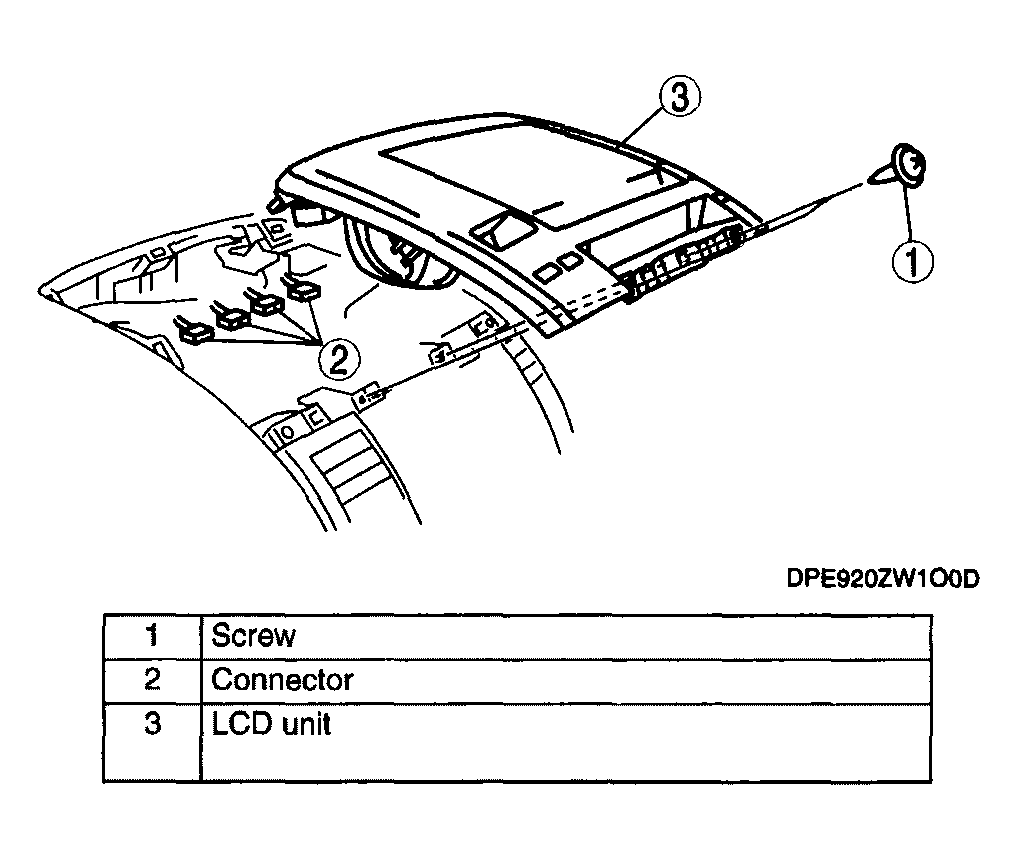

    Fig 1: Removing LCD Unit
    G04317448Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
