LCD Unit Removal Note

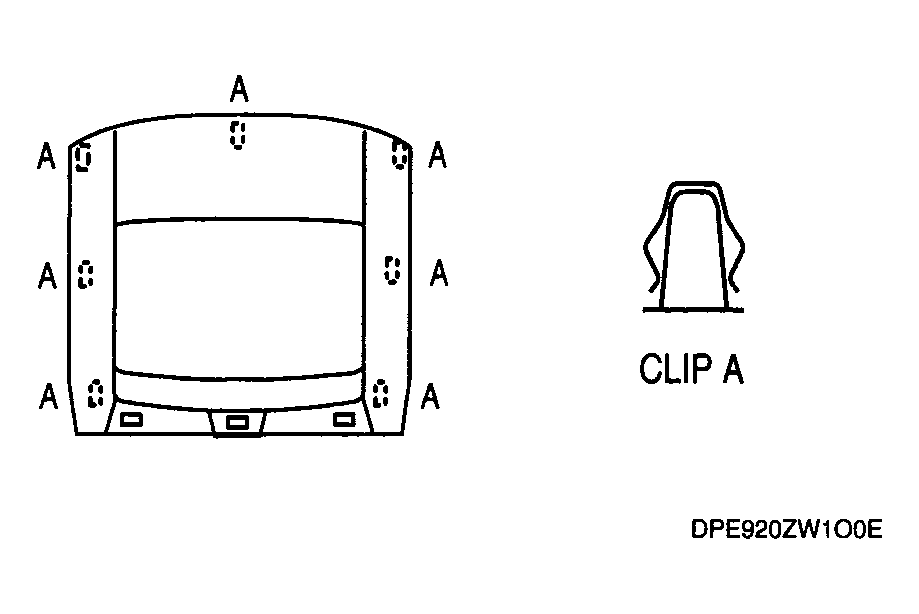

  1. Pull the lower LCD unit outward, detach clip A.
    Fig 1: Pulling Lower LCD Unit Outward
    G04317449Courtesy of MAZDA MOTORS CORP.

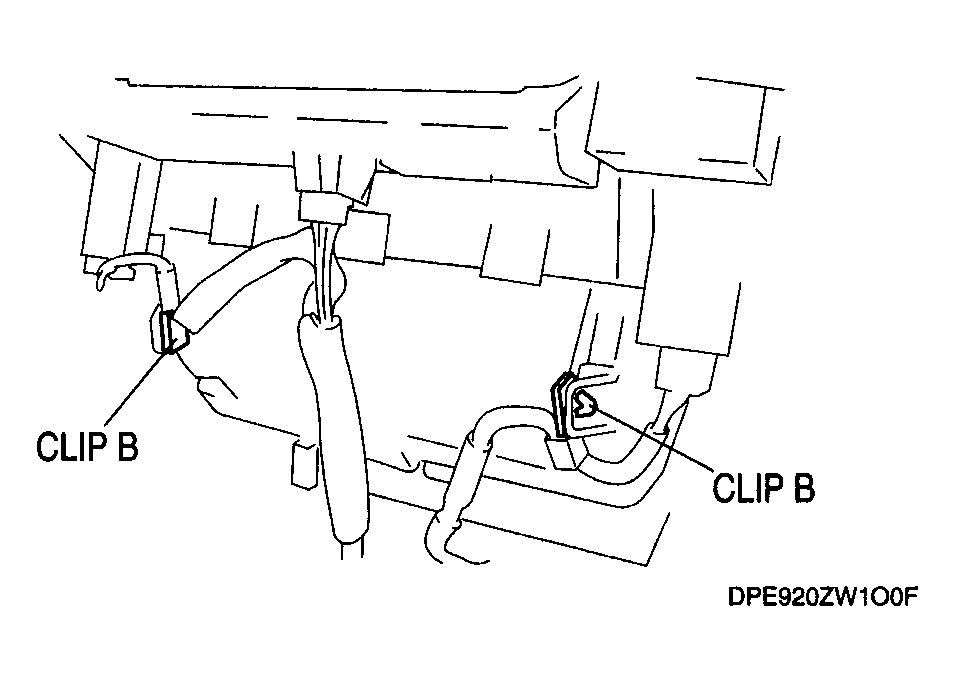

  2. Detach B, and then remove the LCD unit.
    Fig 2: Detaching B Clip
    G04317450Courtesy of MAZDA MOTORS CORP.
