Front Tweeter Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish from the front door. (See INNER GARNISH REMOVAL/INSTALLATION ).
  4. Remove the front tweeter.
  5. Install in the reverse order of removal.

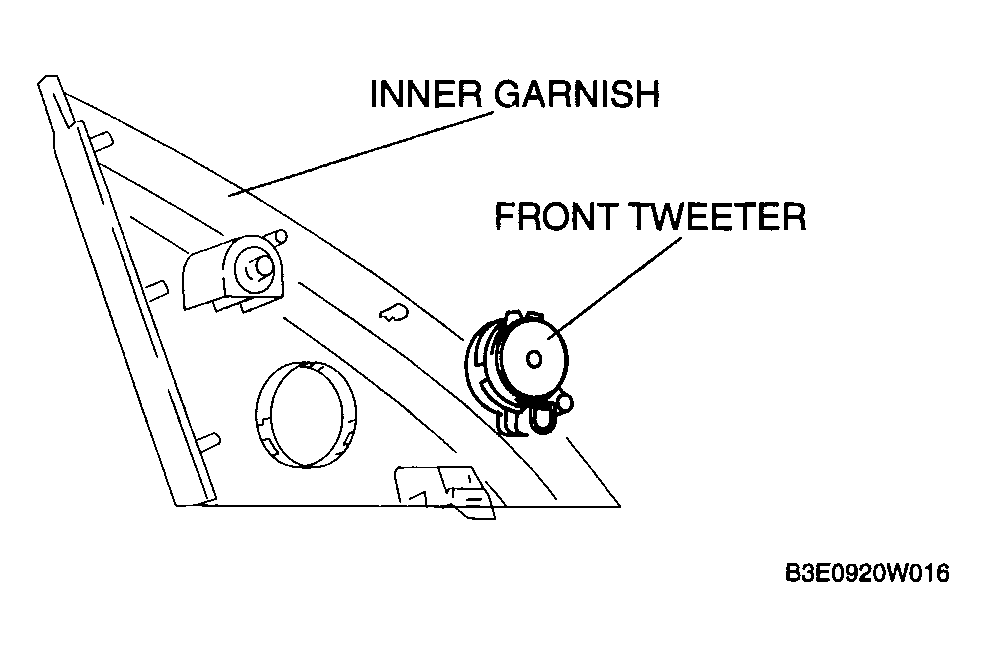

    Fig 1: Removing Inner Garnish From Front Door And Front Tweeter
    G04317456Courtesy of MAZDA MOTORS CORP.
