Socket Removal Note

Insert a tape-wrapped flathead screwdriver into the socket hole and push on the ring projection to lift the socket outward.

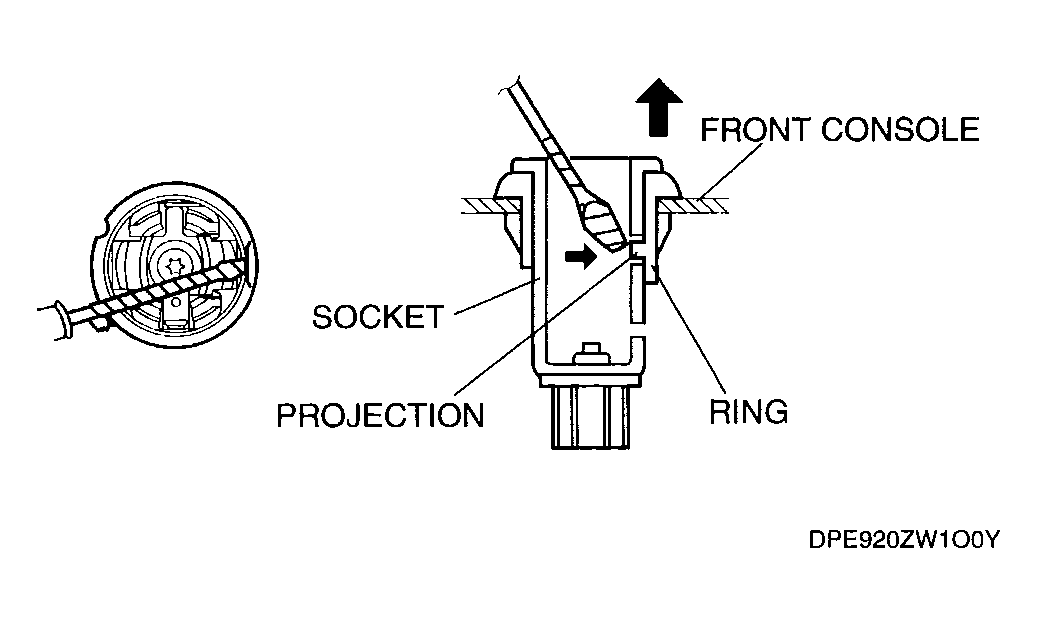

Fig 1: Inserting A Tape-Wrapped Flathead Screwdriver Into Socket Hole
Courtesy of MAZDA MOTORS CORP.
Lift out the socket until the ring projection locks into the lower socket hole as shown in the figure.

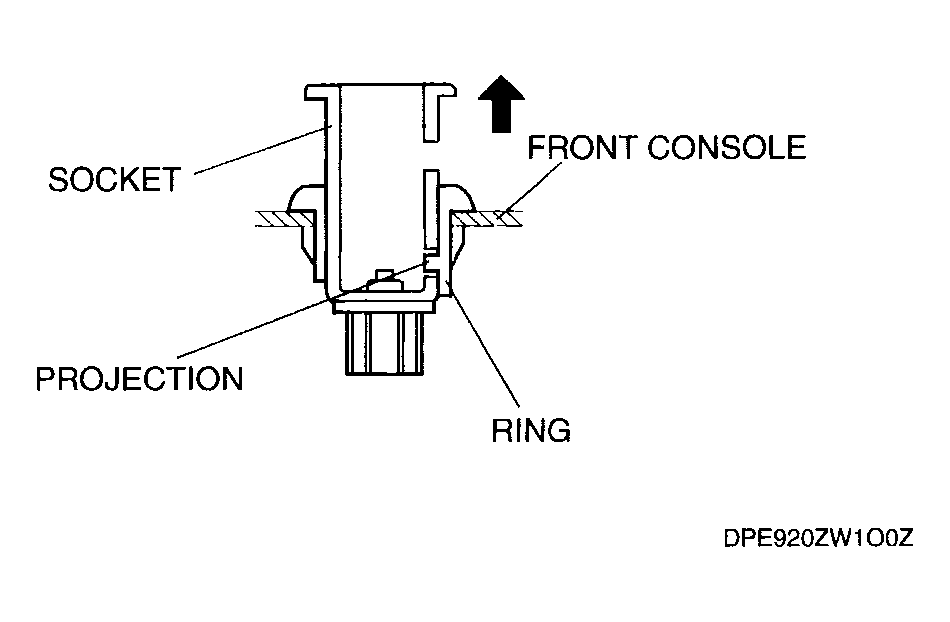

Fig 2: Lifting Out Socket Until Ring Projection Locks Into Lower Socket Hole
Courtesy of MAZDA MOTORS CORP.
From the rear of the front console, insert a tape-wrapped flathead screwdriver between the socket and the ring as shown in the figure.
While lifting the ring projection with the flathead screwdriver, push out and remove the socket.

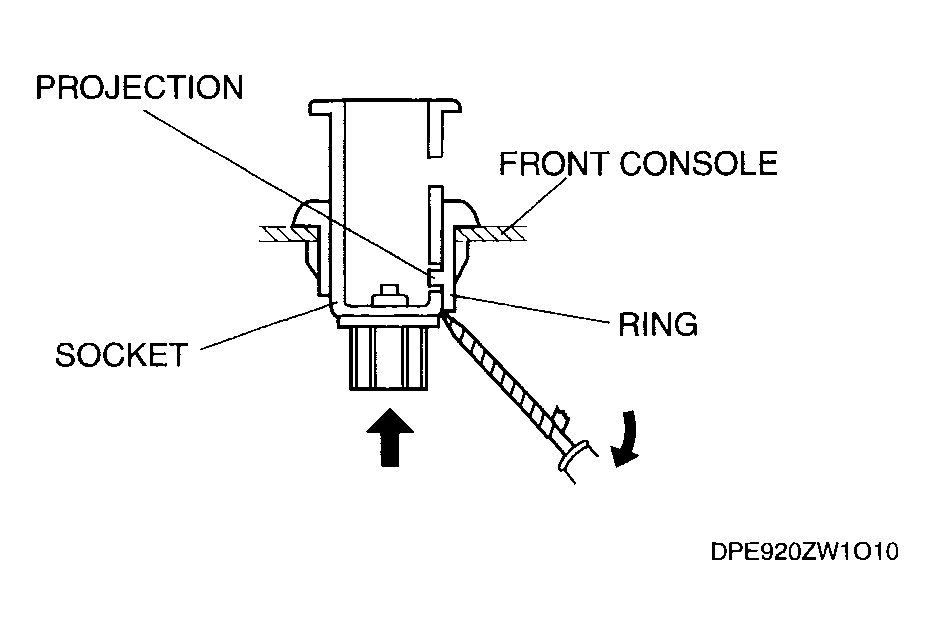

Fig 3: Inserting A Tape-Wrapped Flathead Screwdriver Between Socket And Ring
Courtesy of MAZDA MOTORS CORP.
