Cigarette Lighter Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the shift lever knob. (MTX)
  4. Remove the selected lever knob. (ATX)
  5. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION ).
  6. Remove in the order indicated in the table.

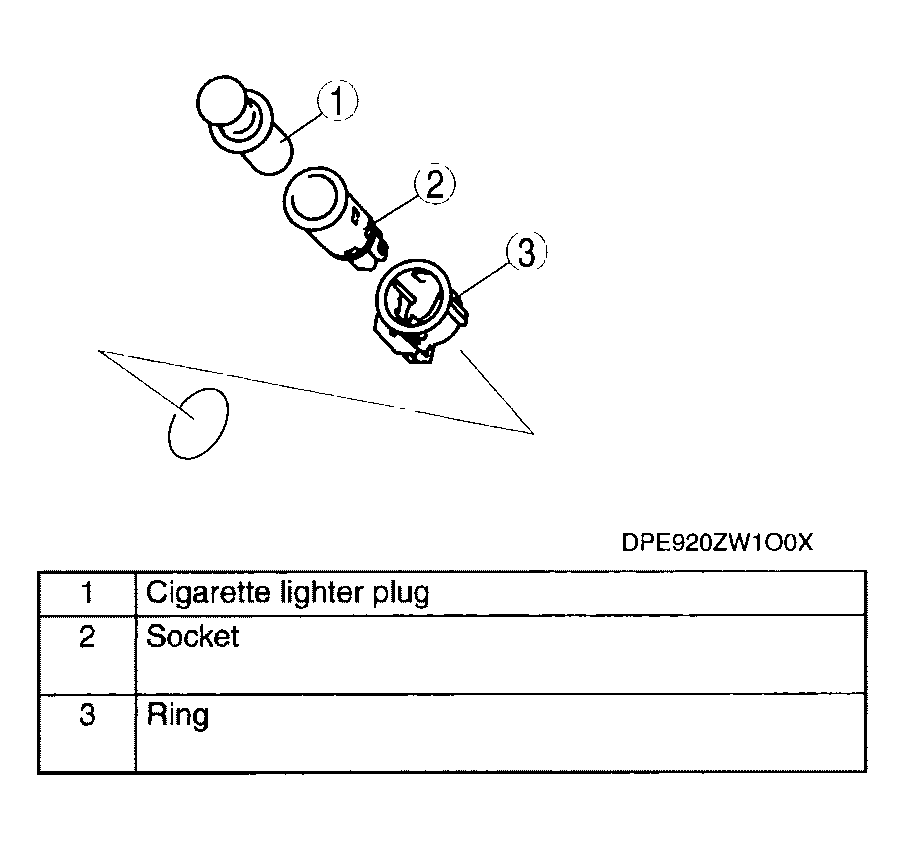

    Fig 1: Removing Cigarette Lighter
    G04317478Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
