Center Panel Unit Removal/Installation: Notes

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION ).
  4. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table.

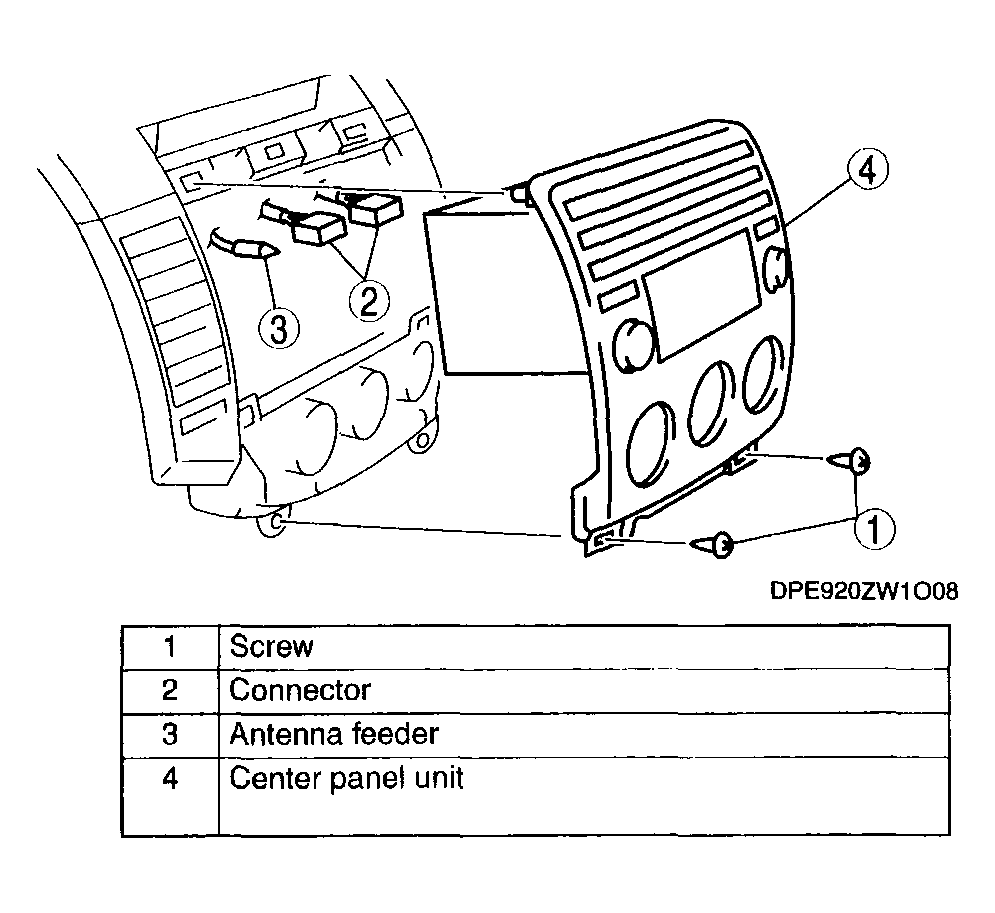

    Fig 1: Removing Center Panel Unit
    G04317443Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
    CAUTION:
    • When installing the center panel unit, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
