Center Panel Unit Removal Note

  1. Pull the center panel unit outward, detach clip A from the dashboard, and then remove the center panel unit.

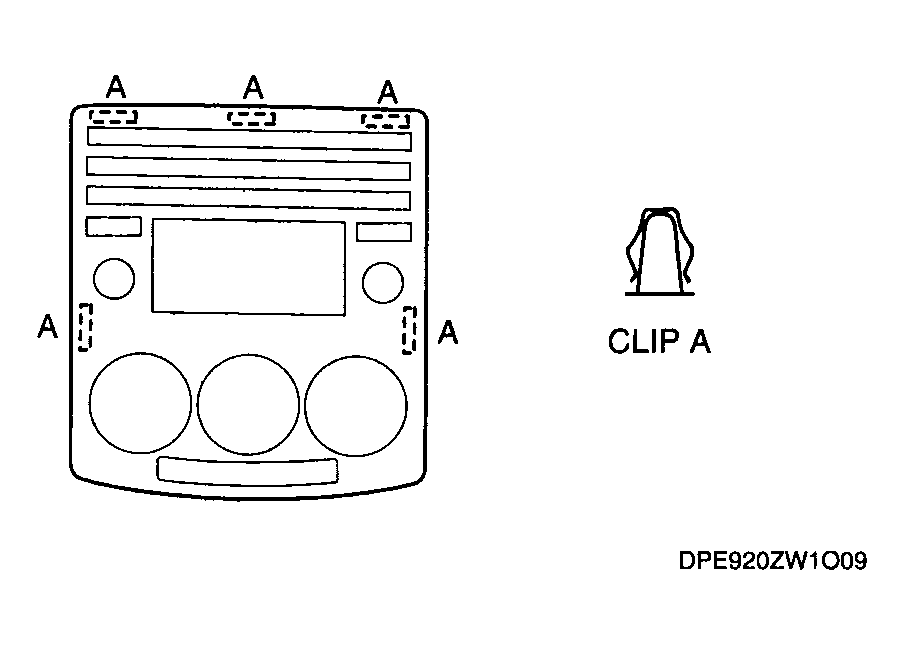

    Fig 1: Identifying Center Panel Unit
    G04317444Courtesy of MAZDA MOTORS CORP.
