Car Navigation Unit Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION ).
    2. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION ).
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    4. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    5. Side panel (See SIDE PANEL REMOVAL/INSTALLATION ).
    6. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.

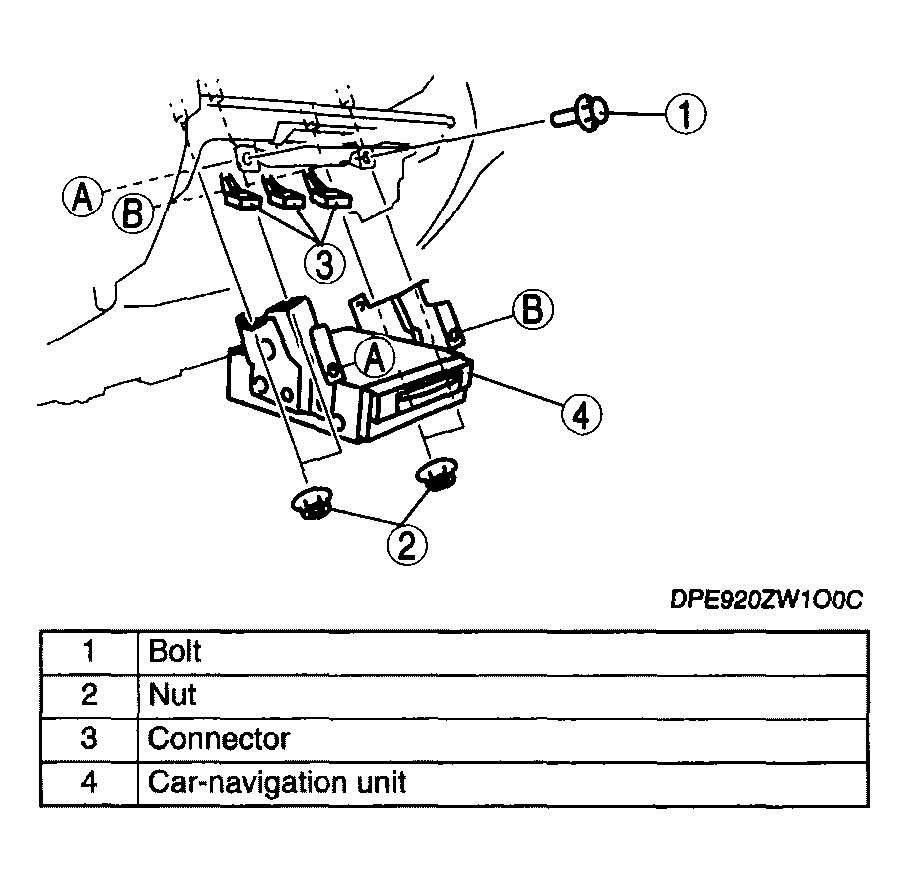

    Fig 1: Removing Car Navigation Unit
    G04317447Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
