Car Navigation Control Switch Inspection
- Operate the car navigation control switch and verify that the car navigation system operates normally.
- If the system does not operate normally, go to the next step.

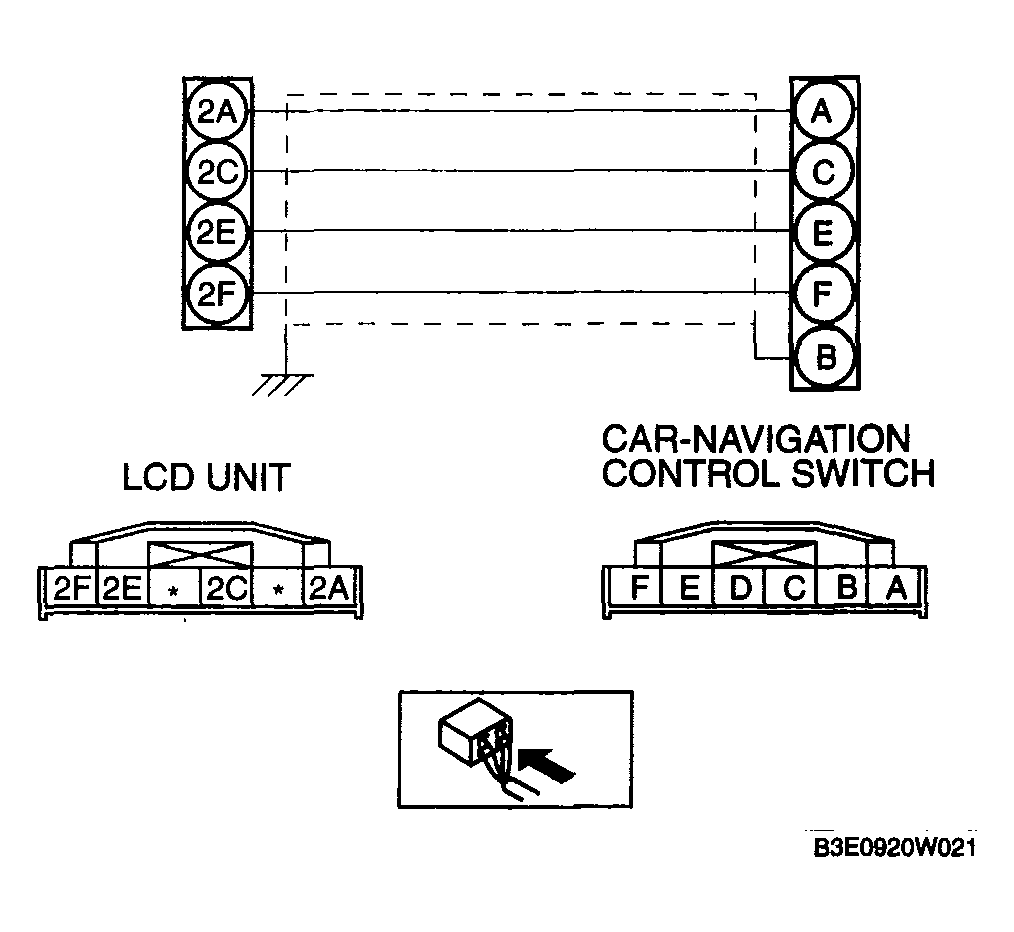

- Inspect the wiring harness between the LCD unit and the car navigation control switch for an open circuit, power short, or a short to ground.
- If there is any malfunction in the wiring harnesses, repair or replace the applicable wiring harness.
- If the wiring harnesses are normal, replace the car navigation control switch.
Courtesy of MAZDA MOTORS CORP.
