Audio Control Switch Inspection

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION ).
  4. Disconnect the audio control switch connector.
  5. Verify the resistance and continuity between the audio control switch terminals.
    • If the resistance and continuity are not as indicated in the tables, replace the audio control light switch.

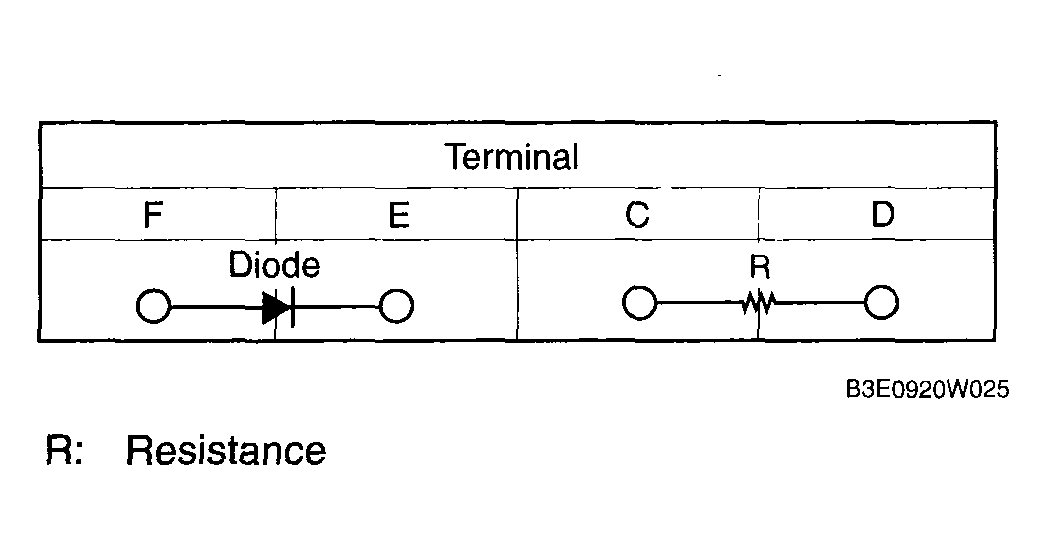

      Fig 1: Audio Control Switch Terminal Continuity Chart
      G04317472Courtesy of MAZDA MOTORS CORP.

      R: Resistance. See RESISTANCE SPECIFICATION CHART .

      RESISTANCE SPECIFICATION CHART

      Switch position Resistance (ohm)
      VOL- button ON 51-56
      VOL+ button ON 140-154
      PRESET+ button ON 286-316
      PRESET- button ON 533-590
      MODE button ON 984-1,089
      MUTE button ON 1,934-2,139
      OFF 4,794-5,300

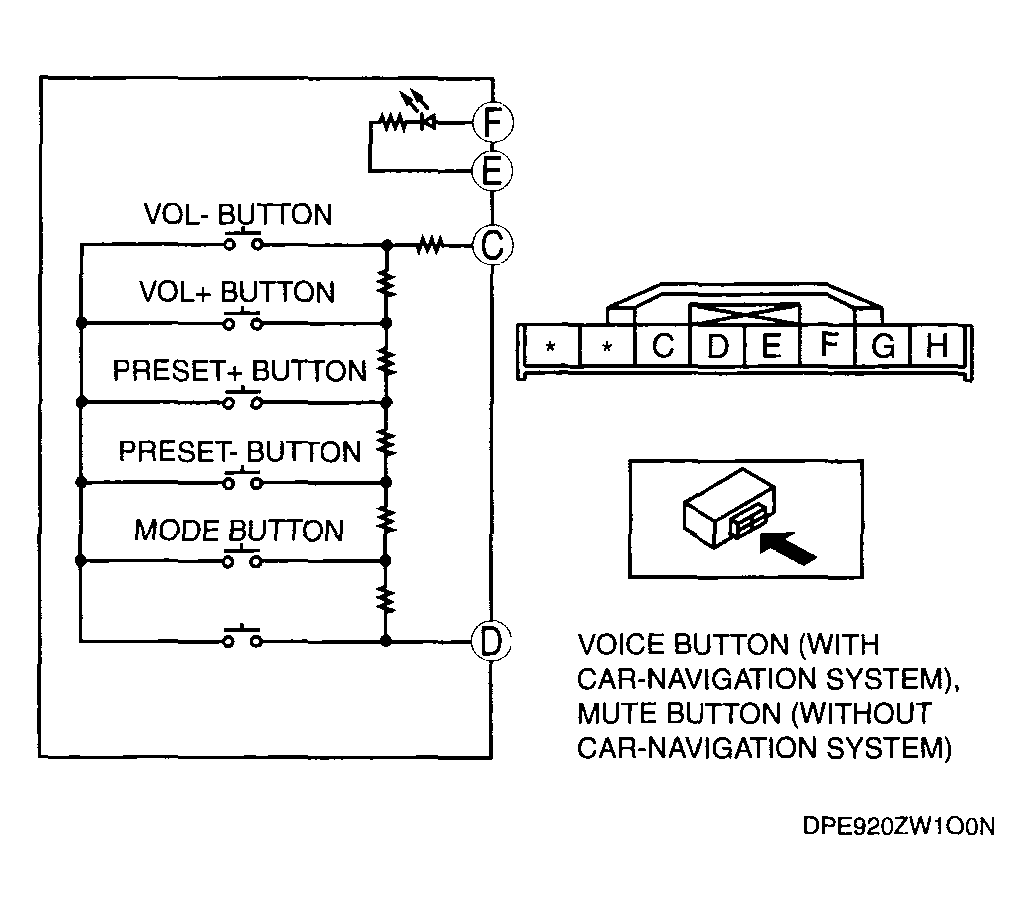

      Fig 2: Inspecting Audio Control Switch
      G04317473Courtesy of MAZDA MOTORS CORP.
