Cap Removal Note

  1. While pressing the tabs, pull the cap outwards.

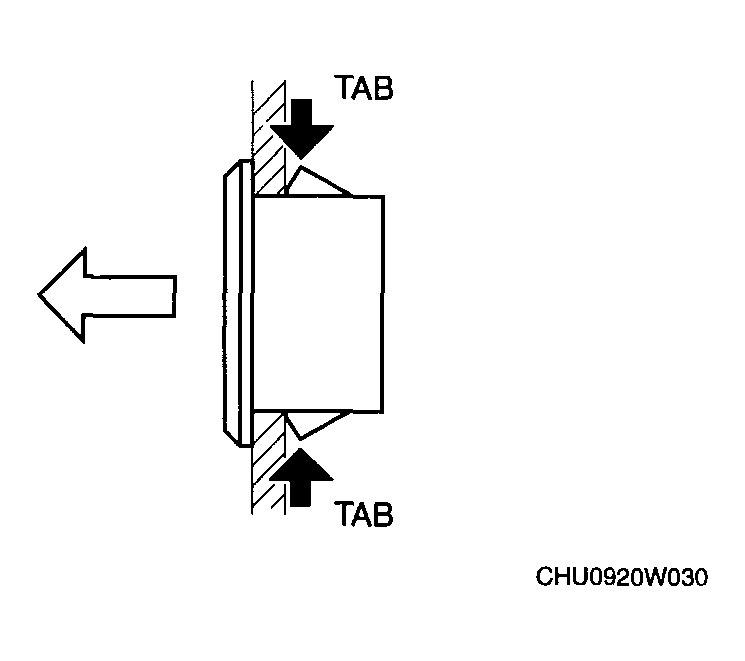

    Fig 1: Pulling Cap Outwards
    G04317485Courtesy of MAZDA MOTORS CORP.
