DTC C1446 [Dynamic Stability Control (DSC)]: Notes

DTC C1446 DETECTION CONDITION AND POSSIBLE CAUSE

DTC C1446 Brake switch
DETECTION CONDITION
  • Brake switch ON signal is input for 6 min or more  when driving at a vehicle speed of 20 km/h {12.4 mph} or more.
  • Brake switch ON signal is not input even though the DSC HU/CM determines vehicle deceleration.
POSSIBLE CAUSE
  • Open or short circuit in the wiring harness between brake switch and the terminal on the PJB
  • Open or short circuit in the wiring harness between the terminals on the PJB and PCM
  • Brake switch malfunction
  • Poor connection at connectors (female terminal)

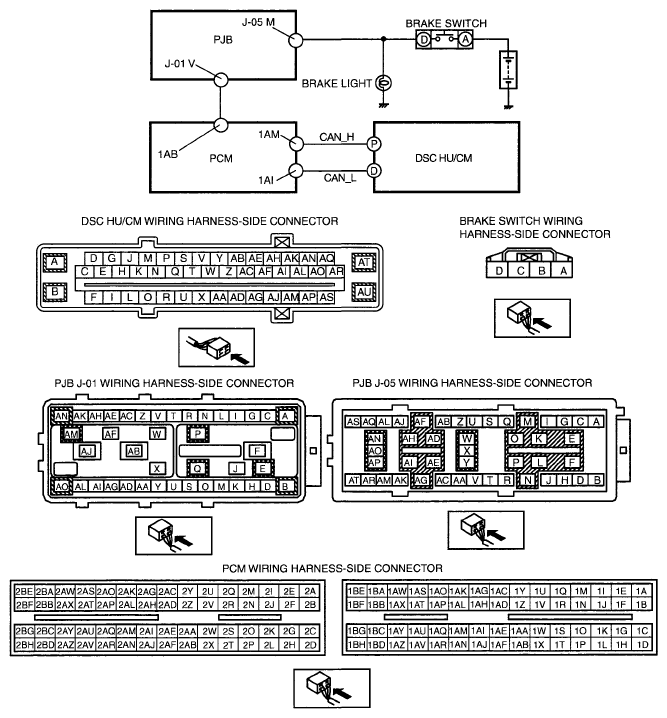

G04955624Courtesy of MAZDA MOTORS CORP.
