Monitoring System And Control System Device Relationship Chart

California Emission Regulation Applicable Model

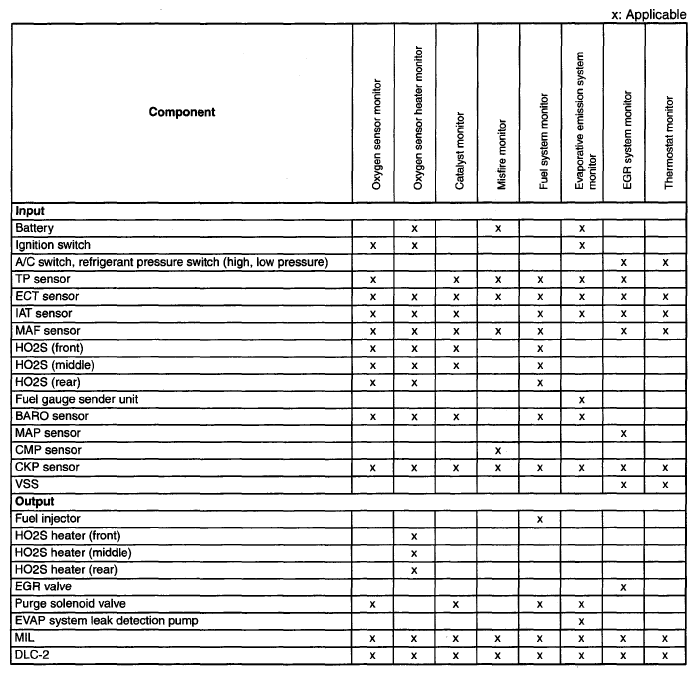

Fig 1: Monitoring System And Control System Device Relationship Chart (1 Of 2)
G04954250Courtesy of MAZDA MOTORS CORP.

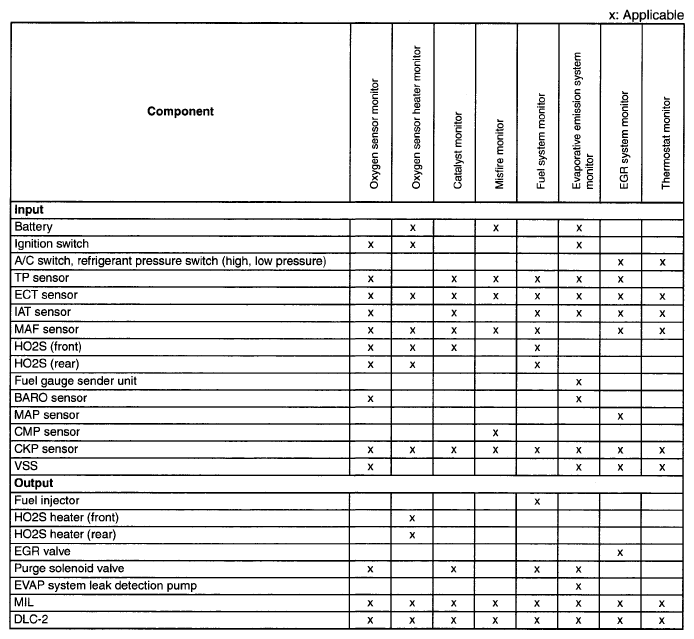

Fig 2: Monitoring System And Control System Device Relationship Chart (2 Of 2)
G04954251Courtesy of MAZDA MOTORS CORP.
