DTC B2898: Notes

DTC B2898 DETECTION CONDITION POSSIBLE CAUSE

DTC B2898 Right turn signal indicator output failure
DETECTION CONDITION
  • Open circuit or short to power supply or GND in wiring harness between PJB and turn light
  • Turn light bulb malfunction
POSSIBLE CAUSE
  • Open circuit in wiring harness between PJB terminal J-01 L and front turn light (RH) terminal A or front side turn light (RH) terminal A
  • Short to power supply in wiring harness between PJB terminal J-01 L and front turn light (RH) terminal A or front side turn light (RH) terminal A
  • Short to GND in wiring harness between PJB terminal J-01 L and front turn light (RH) terminal A or front side turn light (RH) terminal A
  • Open circuit in wiring harness between PJB terminal J-05 AK and rear turn light (RH) terminal A
  • Short to power supply in wiring harness between PJB terminal J-05 AK and rear turn light (RH) terminal A
  • Short to GND in wiring harness between PJB terminal J-05 AK and rear turn light (RH) terminal A
  • Turn lights malfunction
  • PJB malfunction

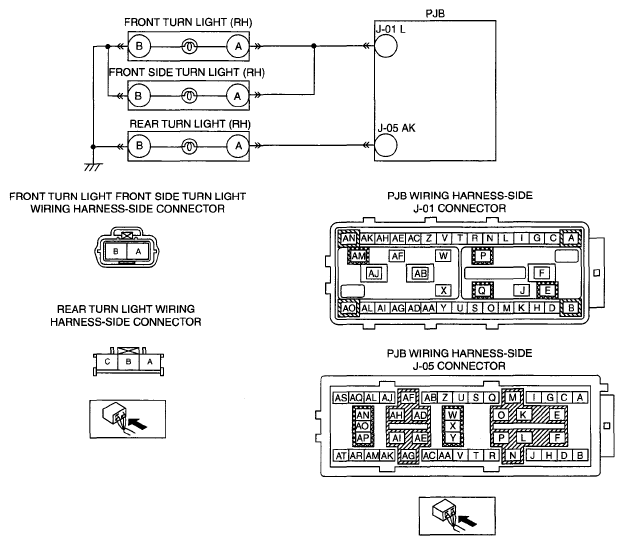

G04956614Courtesy of MAZDA MOTORS CORP.
