DTC B2574: Notes

DTC B2574 DETECTION CONDITION POSSIBLE CAUSE

DTC B2574 Driver door lock switch short to ground
DETECTION CONDITION  Short to GND in wiring harness between PJB and driver-side door lock-link switch
POSSIBLE CAUSE

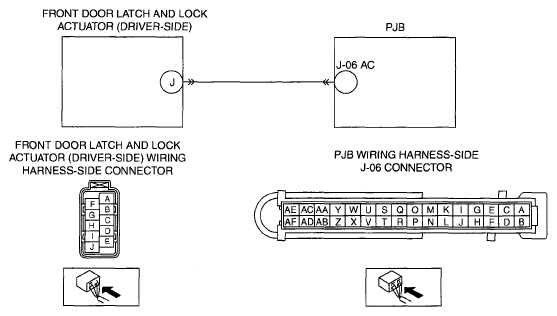

  • Short to GND in wiring harness between PJB terminal J-06 AC and front door latch and lock actuator (driver-side) terminal J
  • Front door latch and lock actuator (driver-side) malfunction
  • PJB malfunction
G04956612Courtesy of MAZDA MOTORS CORP.
