DTC B2555: Notes
DTC B2555 DETECTION CONDITION POSSIBLE CAUSE
| DTC B2555 |
Dome light output circuit short to battery |
| DETECTION CONDITION |

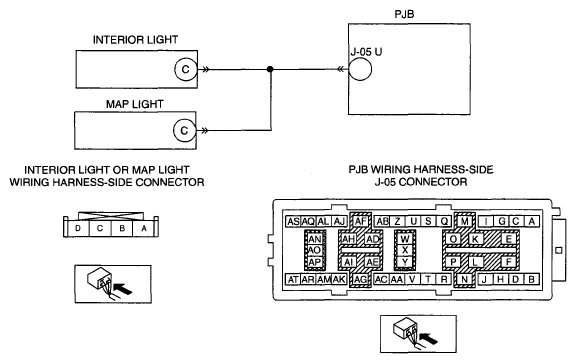

Open circuit or short to power supply in wiring harness between PJB and interior lights |
| POSSIBLE CAUSE |
- Short to power supply in wiring harness between PJB terminal J-05 U and interior light terminal C
- Short to power supply in wiring harness between PJB terminal J-05 U and map light terminal C
- Open circuit in wiring harness between PJB terminal J-05 U and interior light terminal C
- Open circuit in wiring harness between PJB terminal J-05 U and map light terminal C
- Interior light malfunction
- Map light malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
