DTC B2096: Notes

DTC B2096 DETECTION CONDITION POSSIBLE CAUSE

DTC B2096	Set switch circuit failure
DETECTION CONDITION	Short to GND in wiring harness between PJB and driver-side door key cylinder switch (lock)

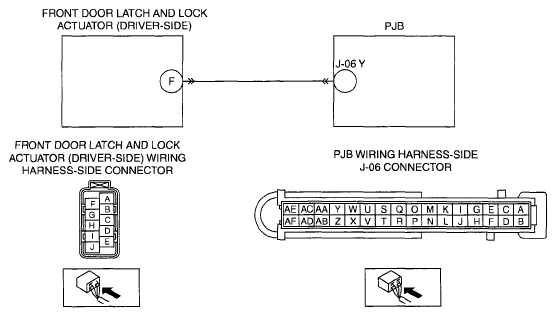

POSSIBLE CAUSE	Short to GND in wiring harness between PJB terminal J-06 Y and front door latch and lock actuator (driver-side) terminal F Front door latch and lock actuator (driver-side) malfunction PJB malfunction
Courtesy of MAZDA MOTORS CORP.
