DTC B2095: Notes

DTC B2095 DETECTION CONDITION POSSIBLE CAUSE

DTC B2095 Reset switch circuit failure
DETECTION CONDITION  Short to GND in wiring harness between PJB and driver-side door key cylinder switch (unlock)
POSSIBLE CAUSE
  • Short to GND in wiring harness between PJB terminal J-06 AA and front door latch and lock actuator (driver-side) terminal B
  • Front door latch and lock actuator (driver-side) malfunction
  • PJB malfunction

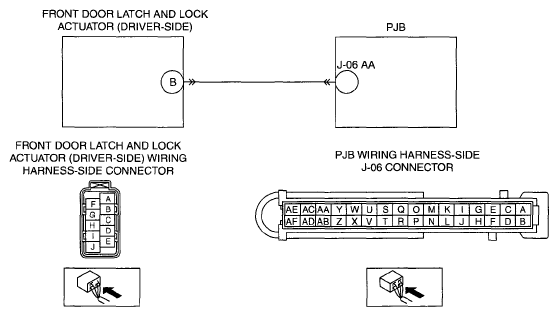

G04956598Courtesy of MAZDA MOTORS CORP.
