DTC B1812: Notes
DTC B1812 DETECTION CONDITION POSSIBLE CAUSE
| DTC B1812 |
Backup light switch input circuit short to battery |
| DETECTION CONDITION |
Short to power supply in wiring harness between PJB and back-up light switch |
| POSSIBLE CAUSE |

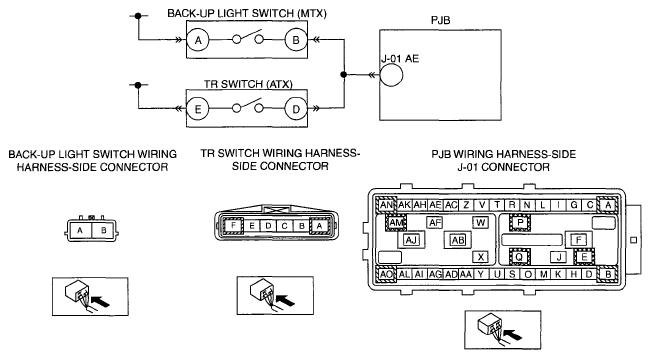

- Short to power supply in wiring harness between PJB terminal J-01 AE and back-up light switch terminal B (MTX)
- Short to power supply in wiring harness between PJB terminal J-01 AE and TR switch terminal D (ATX)
- Back-up light switch malfunction (MTX)
- TR switch malfunction (ATX)
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
