DTC B1447: Notes

DTC B1447 DETECTION CONDITION POSSIBLE CAUSE

DTC B1447 Wiper park sense circuit open
DETECTION CONDITION  Open circuit in wiring harness between PJB and windshield wiper motor (autostop switch)
POSSIBLE CAUSE
  • Open circuit in wiring harness between PJB terminal J-01 Al and windshield wiper motor terminal C
  • Windshield wiper motor malfunction
  • PJB malfunction

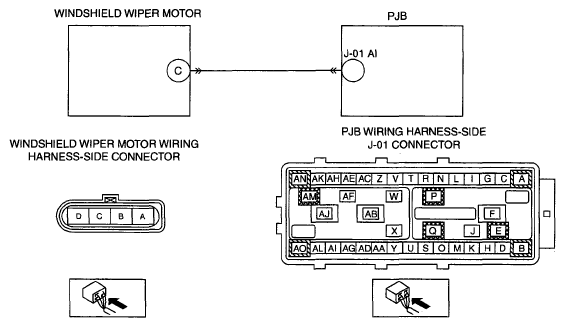

G04956582Courtesy of MAZDA MOTORS CORP.
