DTC B1328: Notes

DTC B1328 DETECTION CONDITION POSSIBLE CAUSE

DTC B1328	Door ajar RF circuit open
DETECTION CONDITION	Open circuit in wiring harness between PJB and front door latch switch (passenger-side)

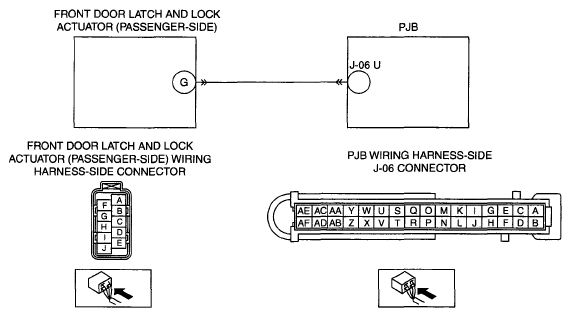

POSSIBLE CAUSE	Open circuit in wiring harness between PJB terminal J-06 U and front door latch and lock actuator (passenger-side) terminal G Front door latch and lock actuator malfunction PJB malfunction
Courtesy of MAZDA MOTORS CORP.
