DTC B1318: Notes
DTC B1318 DIAGNOSTIC PROCEDURE
| DTC B1318 |
Battery voltage low |
| DETECTION CONDITION |
Input voltage from the battery is excessively low |
| POSSIBLE CAUSE |

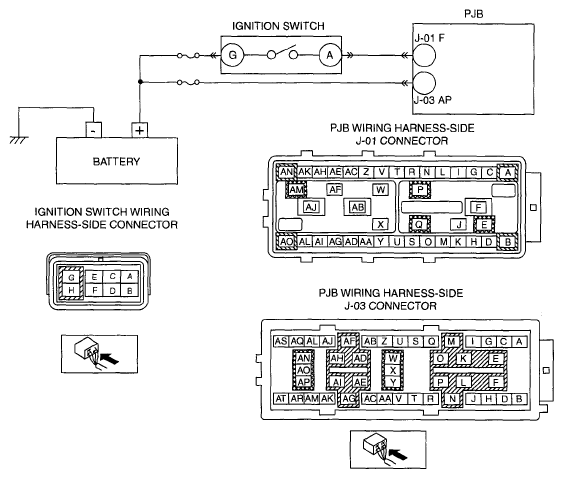

- Open circuit in wiring harness between PJB terminal J-01 F and battery
- Open circuit in wiring harness between PJB terminal J-03 AP and battery
- Short to GND in wiring harness between PJB terminal J-01 F and battery
- Short to GND in wiring harness between PJB terminal J-03 AP and battery
- Battery malfunction
- Generator malfunction
- PJB malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
