3 i, 2.0 F, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (LF, L3)
>>
Control System Diagram
>>
Except for California Emission Regulation Applicable Model
Except for California Emission Regulation Applicable Model

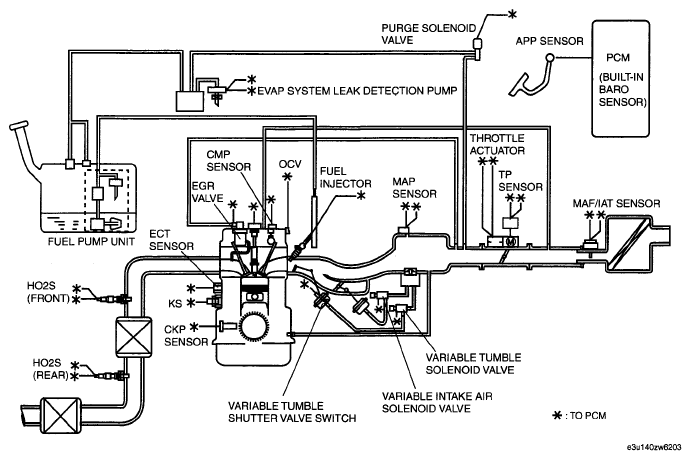

Fig 1: Control System Diagram - Except For California Emission Regulation Applicable Model
Courtesy of MAZDA MOTORS CORP.
