Instrument Cluster Disassembly/Assembly

CAUTION:
  • Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
  1. Disassemble in the order indicated in the illustration.

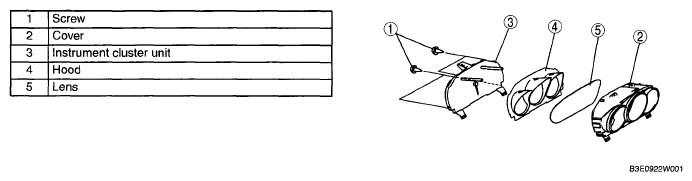

    Fig 1: Identifying Instrument Cluster Disassembly Sequence
    G04957171Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
