Front Door Lock Actuator Inspection

  1. Apply battery positive voltage and connect ground to the corresponding front door lock actuator terminals, and inspect the front door lock actuator operation.
    • If not as specified, replace the front door latch and lock actuator.
      LOCK ACTUATOR OPERATION

      Lock actuator operation Connection
      B+ GND
      Lock LH: D
      RH:C      		 LH:C
      RH:D
      Unlock LH:C
      RH:D      		 LH:D
      RH:C

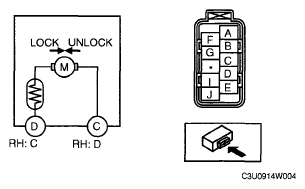

      Fig 1: Identifying Front Door Lock Actuator Connector With Circuit Diagram
      G04956818Courtesy of MAZDA MOTORS CORP.
