Fuel Injector Removal/Installation: Notes

  1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION ).
  2. Remove the plug hole plate.
  3. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF, L3] .)
  4. Disconnect the negative battery cable.
  5. Disconnect the fuel injector connector.
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.
  8. Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION ).

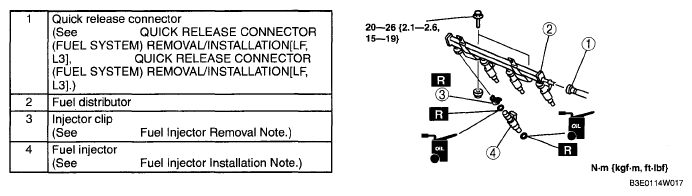

    Fig 1: Fuel Injector Replacement Components With Torque Specifications
    G04954842Courtesy of MAZDA MOTORS CORP.
