Rear Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

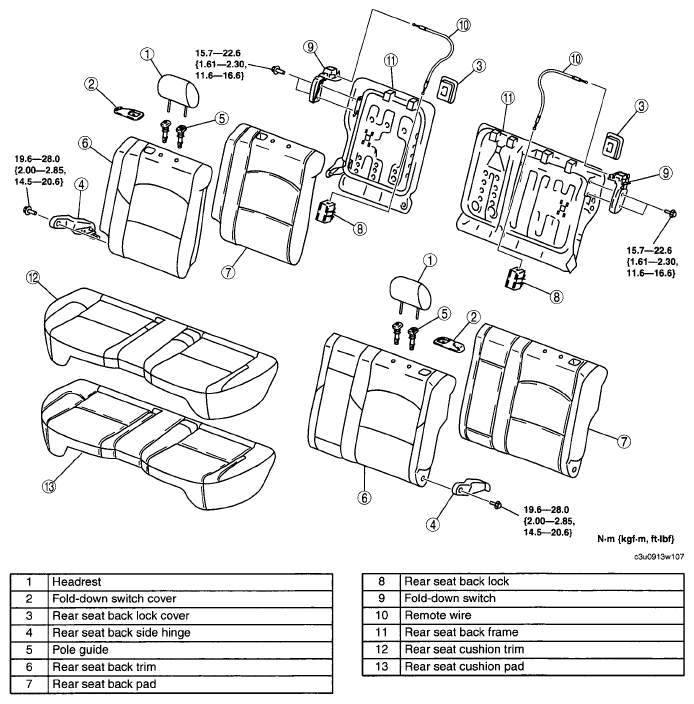

    Fig 1: Rear Seat Replacement Components With Torque Specifications
    G04956804Courtesy of MAZDA MOTORS CORP.
