Transaxle Range (Tr) Sensor: Installation

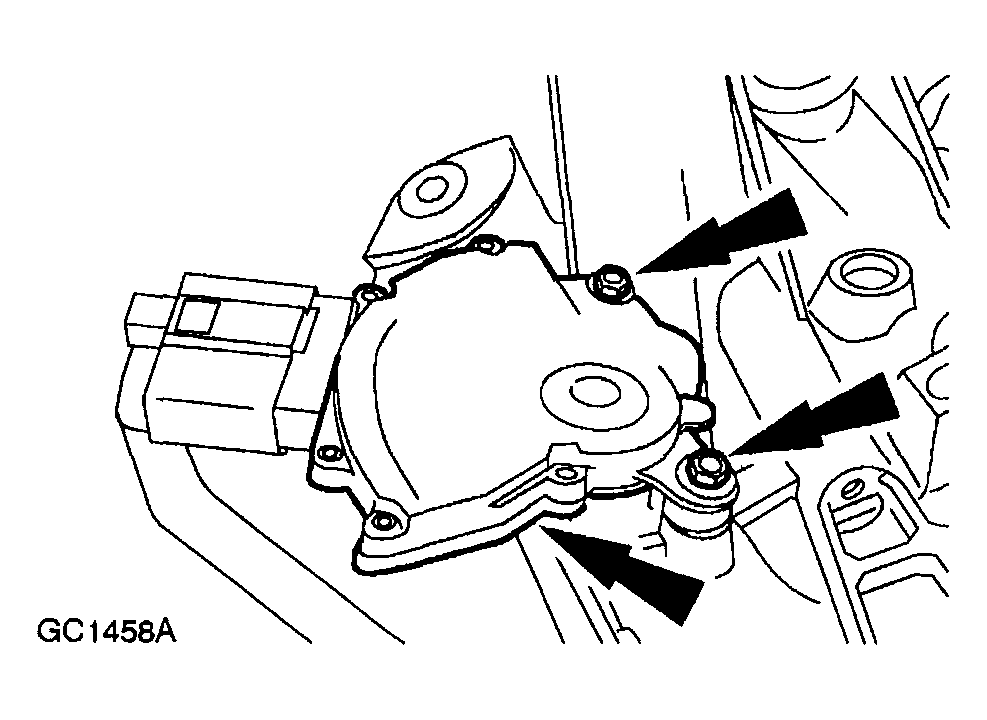

Fig 1: Installing Transaxle Range (TR) Sensor And Bolts

Courtesy of MAZDA MOTORS CORP.

NOTE:

• Make sure the transaxle is in the NEUTRAL position.

1. Install the transaxle range (TR) sensor and loosely install the bolts.

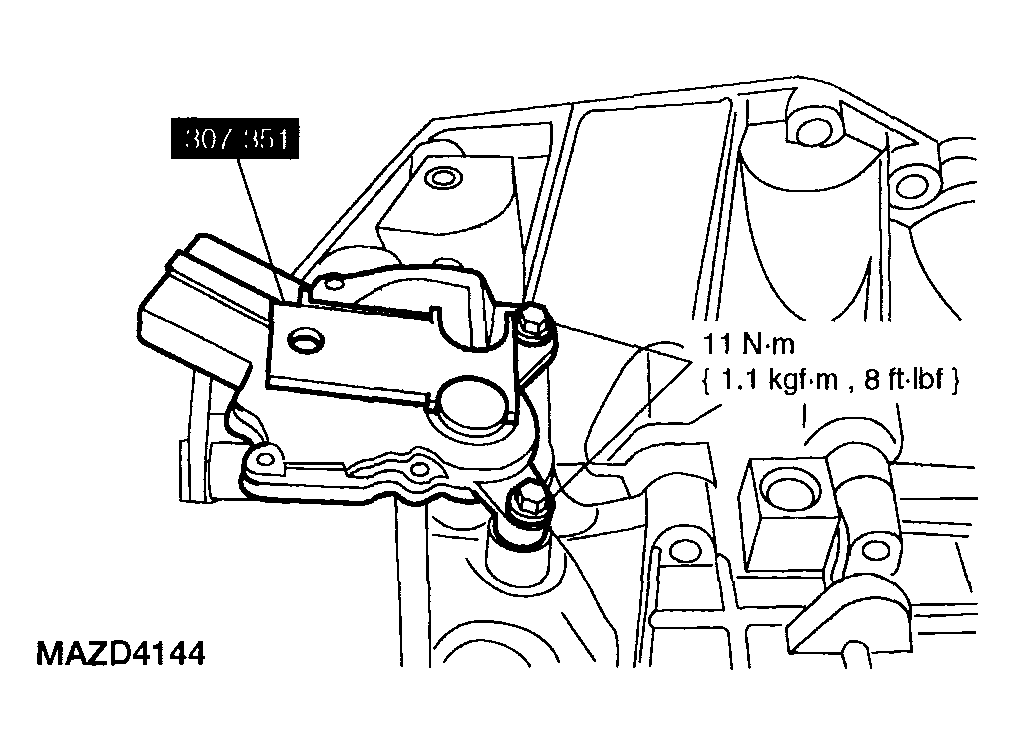

   Fig 2: Aligning TR Sensor And Tightening Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
2. Using the special tool, align the TR sensor and tighten the bolts.
   • Connect the electrical connector.
     NOTE:

     • Before installing the battery tray check the vent tube hose for any obstructions, kinks, or incorrect routing position.
3. Install the battery and tray. See BATTERY TRAY - 3.0L (4V) .
4. Check the correct operation with parking brake control engaged. The engine should start only in PARK or NEUTRAL. Backup lamps should be active only in the REVERSE position.
