Torque Converter Insert Check: Inspection

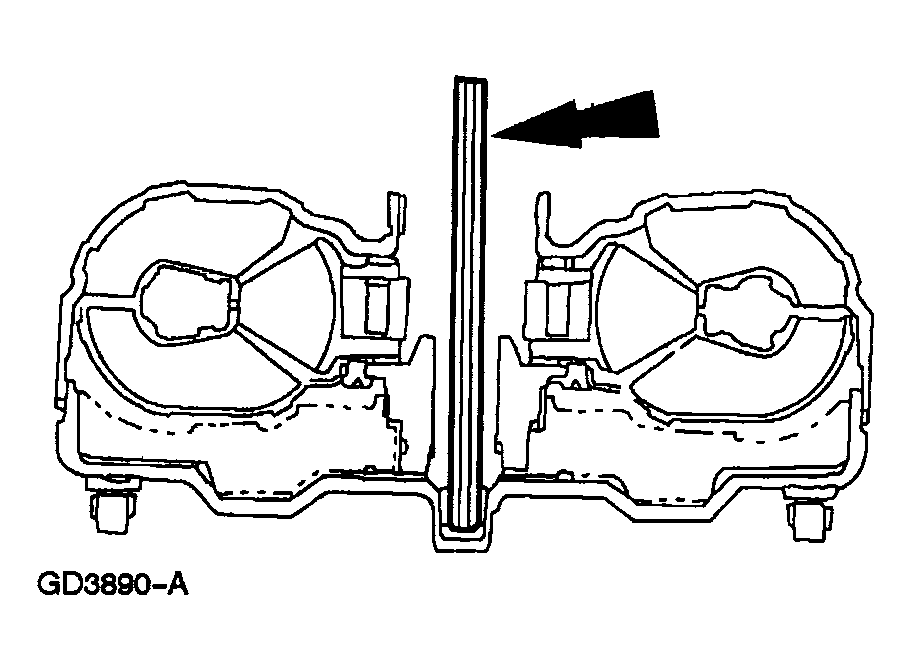

Fig 1: Installing Oil Pump Drive Shaft Into Torque Converter

Courtesy of MAZDA MOTORS CORP.

1. Install the oil pump drive shaft into the torque converter.

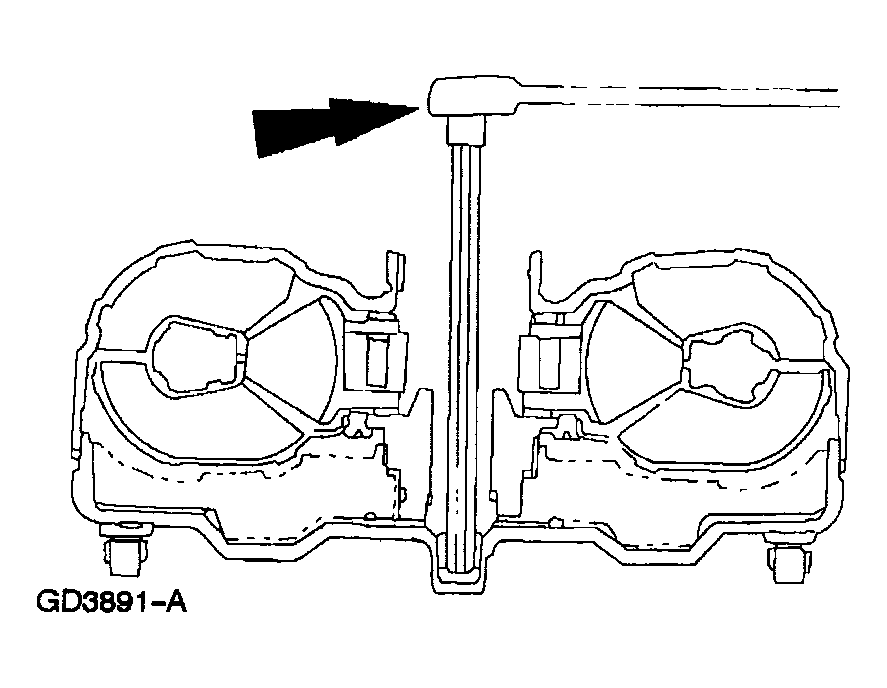

   Fig 2: Installing Torque Wrench

   Courtesy of MAZDA MOTORS CORP.
2. Install a torque wrench with a 5/16 inch Allen head socket attached on the oil pump drive shaft.

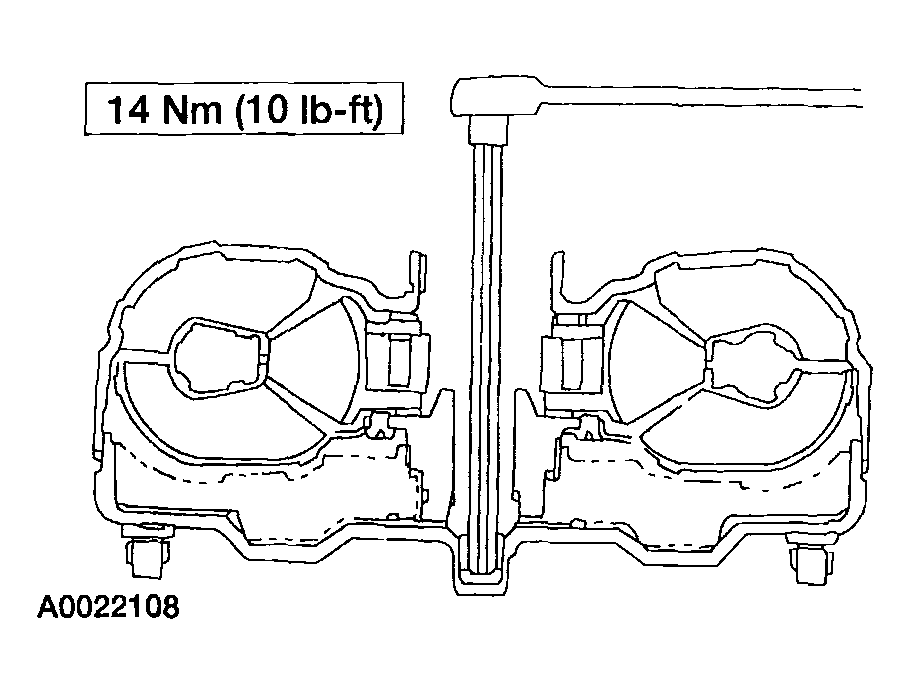

   Fig 3: Verifying Insert Can Hold Torque Required

   Courtesy of MAZDA MOTORS CORP.
3. Verify that the insert can hold torque.
4. If the insert cannot hold the specified torque, install a new torque converter.
