Main Control Cover And Gasket: Installation

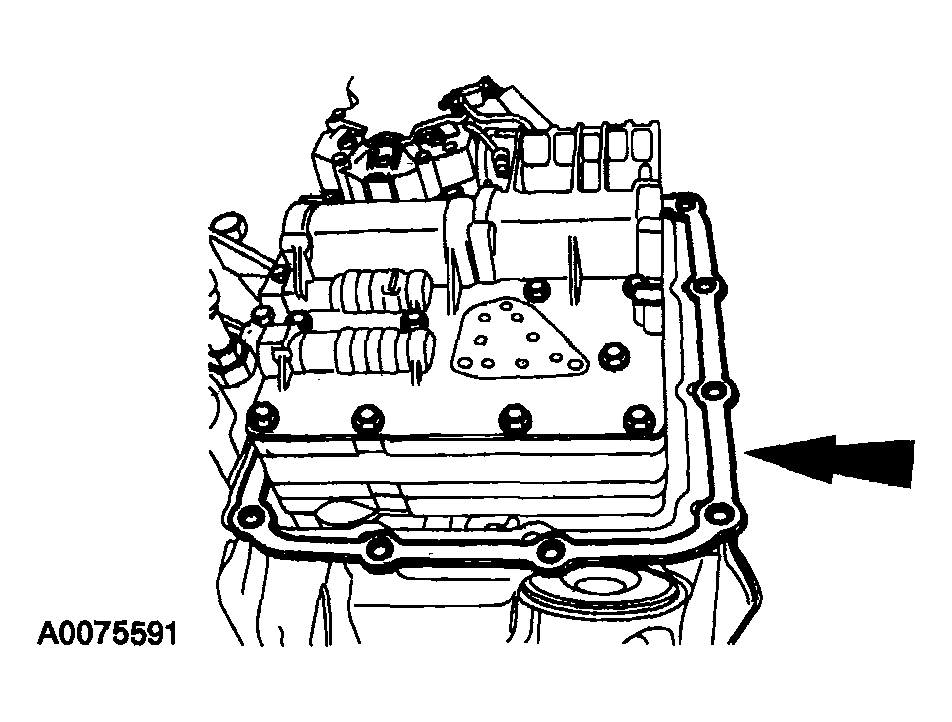

Fig 1: Installing Main Control Cover Gasket

Courtesy of MAZDA MOTORS CORP.

1. Position the main control cover gasket on the case.

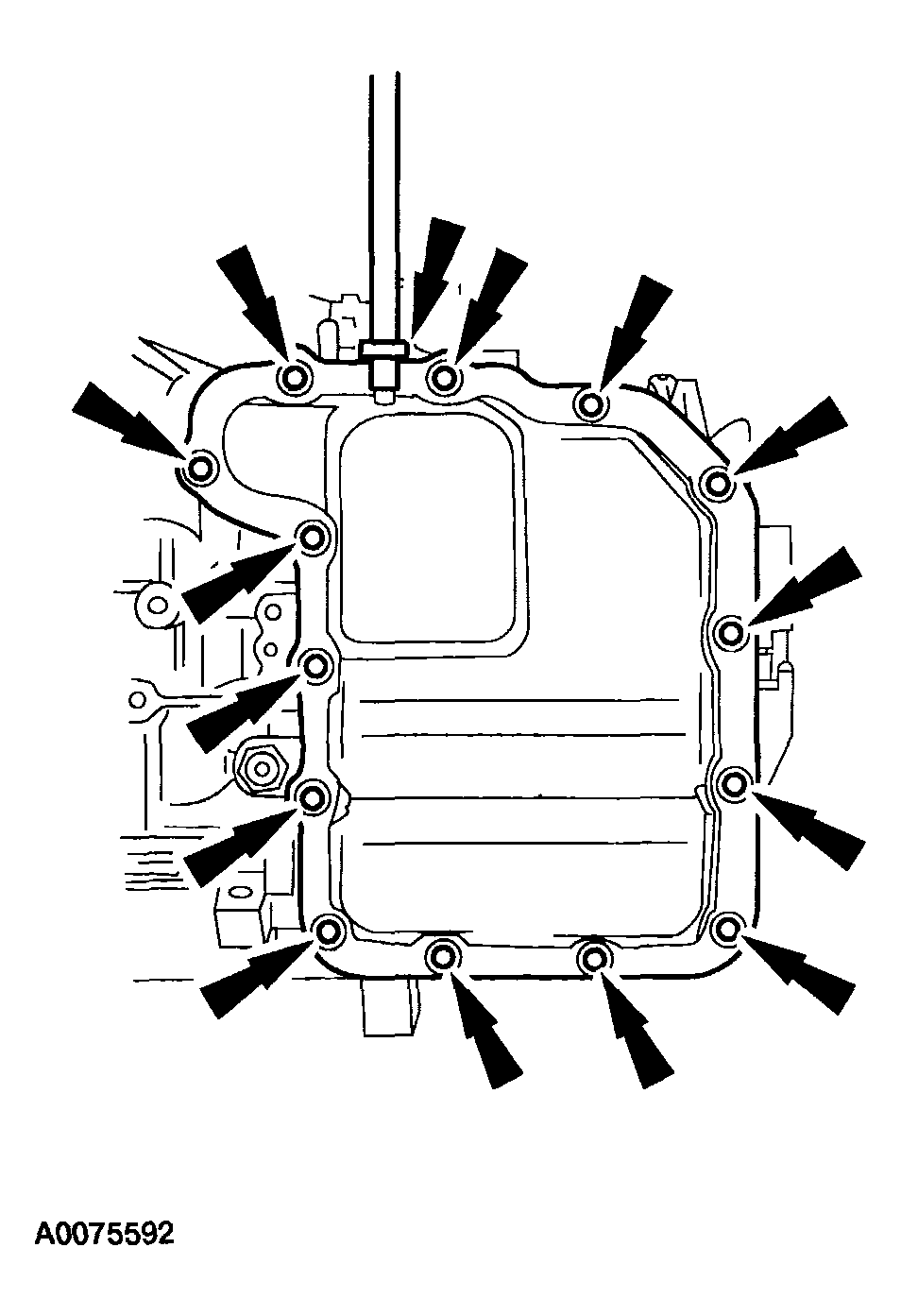

   Fig 2: Installing Main Control Cover On Case

   Courtesy of MAZDA MOTORS CORP.
2. Position the main control cover on the case and loosely install the bolts.

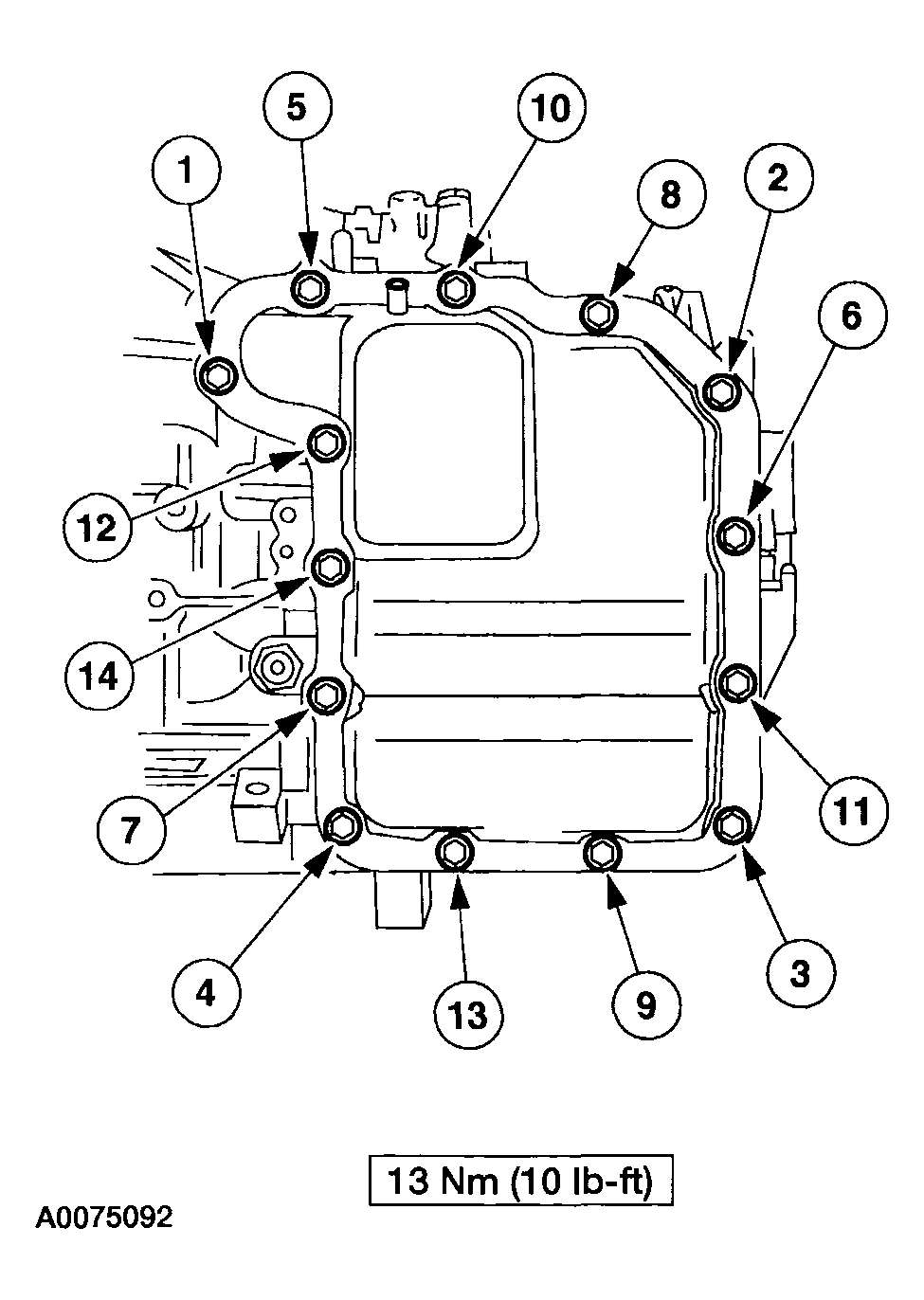

   Fig 3: Installing Main Control Cover And Tightening Bolts In Sequence With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
   NOTE:

   • Install the cooler bypass studs in locations 3 and 11.
3. Tighten the bolts in sequence as indicated.

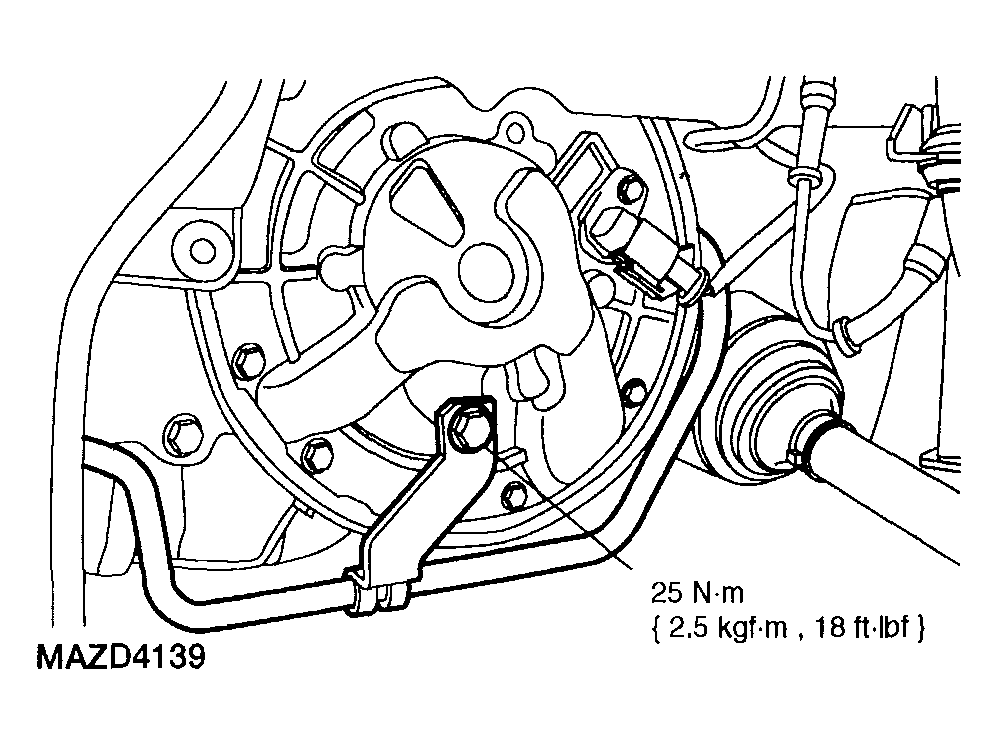

   Fig 4: Installing Transmission Fluid Cooler Tubes And Bracket Bolts With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
4. Position the transmission fluid cooler tubes in place and install the bolt.
   Fig 5: Installing Lower Radiator Hose

   Courtesy of MAZDA MOTORS CORP.
5. Install the lower radiator hose.

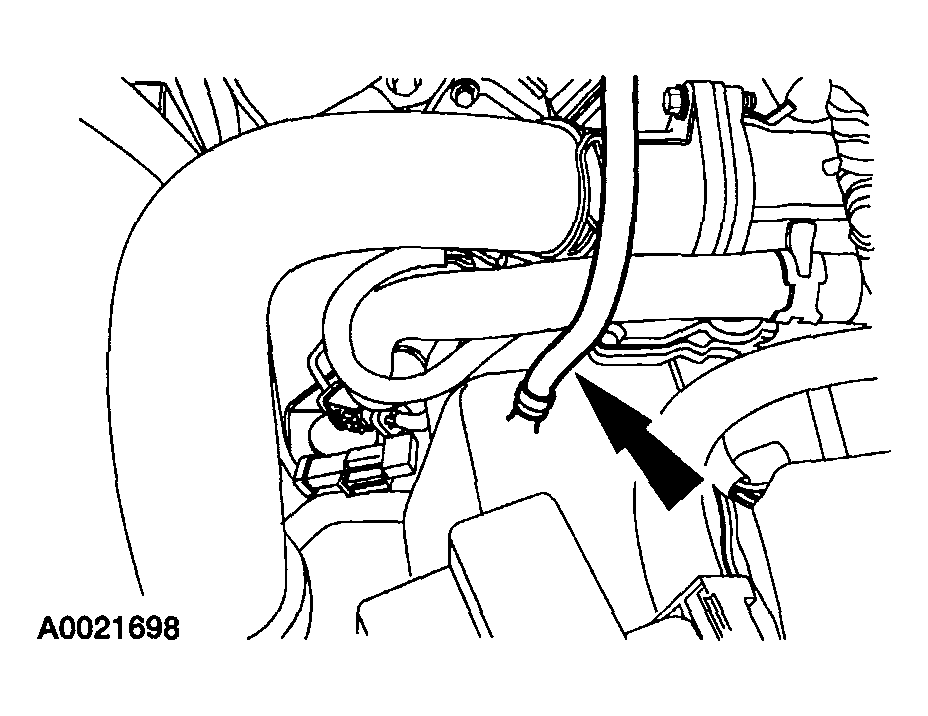

   Fig 6: Connecting Vent Hose To Main Control Cover

   Courtesy of MAZDA MOTORS CORP.
6. Connect the vent hose to the main control cover.

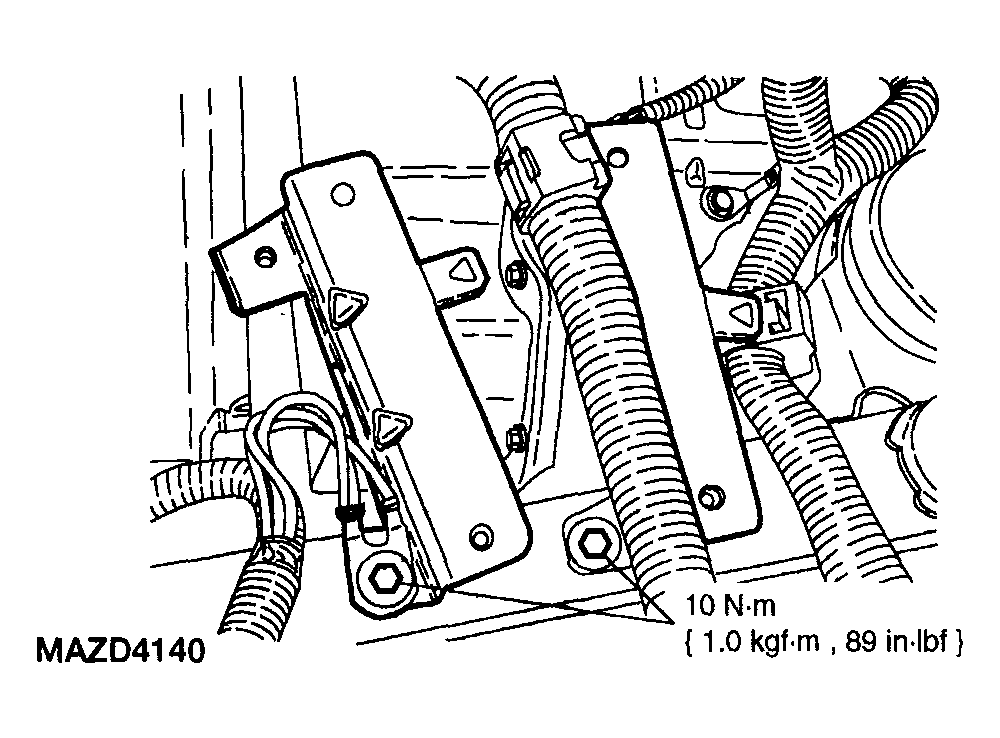

   Fig 7: Installing Battery Tray Bracket

   Courtesy of MAZDA MOTORS CORP.
7. Install the battery tray bracket.

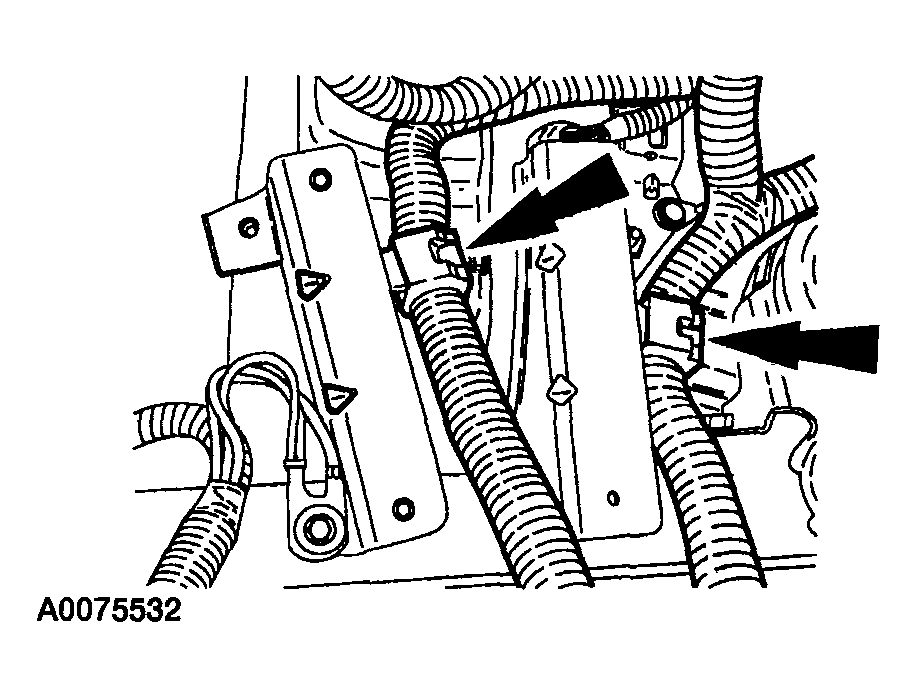

   Fig 8: Connecting Wiring Harness To Battery Tray Bracket

   Courtesy of MAZDA MOTORS CORP.
8. Connect the wiring harness to the battery tray bracket.
9. Install the battery tray. See BATTERY TRAY - 2.3L or BATTERY TRAY - 3.0L (4V) .
10. Fill the engine cooling system. See COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
11. Check the transaxle fluid, add fluid as necessary using MERCON® Automatic Transaxle Fluid (ATF).
12. Start the engine and move the transaxle range selector lever through all gear positions. Refill as necessary.
